46 size EP/GP

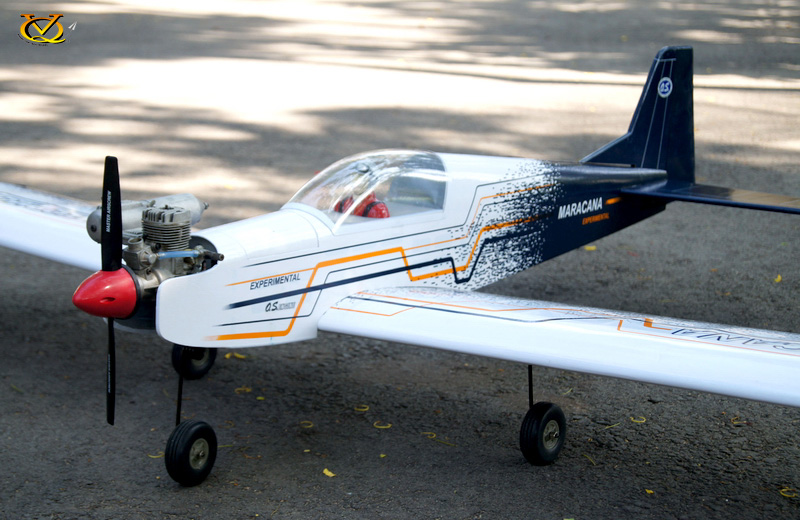

MARACANA          (46 size - Sport category)


Some models are just easy. Easy to Fly, Easy to Assemble, Easy to Setup. The Maracana 46 is just that: Easy.  This is a pilot's airplane, designed for pure joy, pure fun, pure model airplane flying. Low wing and constant cord, this wing just wants to fly and is the ultimate in a forgiving low-wing plan form. The trike gear makes landings and takeoffs easy for the student pilot. Veteran pilots are going to enjoy putting the Maracana through its paces. The low wing, long tail, semi-symmetrical setup flies better in wind than high wing trainers, yets gives low speed performance all pilots enjoy.

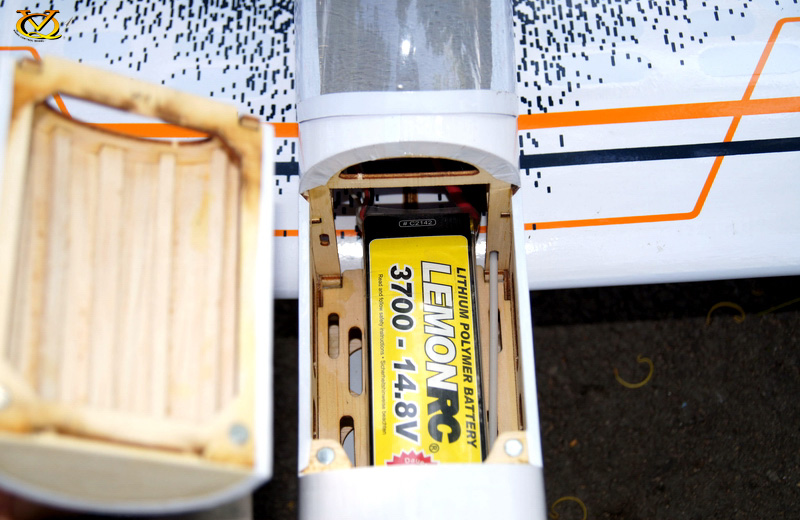

Power it Any Way You Want. 46 two stroke, 52 four stroke or 5S Lipo/Brushless, the mounts and access are all there. Lipo has top-access through the fuselage. There's no cowl, so there's no cutting, no air flow problems, no hassles. Assembly is no-hassle too. The all-wood airframe is laser cut and jig built and factory covered for a straight, true, and reliable airframe ready to provide you with hundreds of reliable flights. Even the pilot, canopy, and instrument panel are all factory installed. Typical wood-ARF assembly and equipment installation is required.


The Maracana. Flying More - Any Way You Want It.

 Features:
-Factory Laser Cut, Jig-Built, All Wood Construction
-Factory Covered and Finished
-Installed Canopy
-Installed Pilot
-Tricycle Gear
-Compatible with Glow and Electric Power System
-Complete Hardware Package





 Specifications:
- Wingspan: 1530mm - 60.24in
- Wing Area: 42.77sq.dm - 662.94sq.in.
- Wing Loading (Minimum): 30.4 g/dm.sq. -
  9.96 oz/sq.in.
(Will Vary with Equipment Used)
- Length: 1140mm - 44.9in
- Bare Airframe Weight: 1.3Kg - 2.86lbs
- RTF Minimum Weight: 2.3Kg - 5.07lbs
 (Will Vary with Equipment Used)
- Radio: 4 channels - 5 standard size servos for glow (two aileron), 4 for EP.
- Glow Engine: 46 Two Stroke, 52 Four Stroke.
- Electric Motor: 4120/05 HP Motor, 5 cell 4500mAh,
 11x8 propeller

 Includes:
- Assembly instructions with stage photos.
- Tail wheel assembly.
- Wheels.
- Decals and all hardware.

Does not include: radio, motor, glue, and silicon fuel line


Product code :  VQA093
