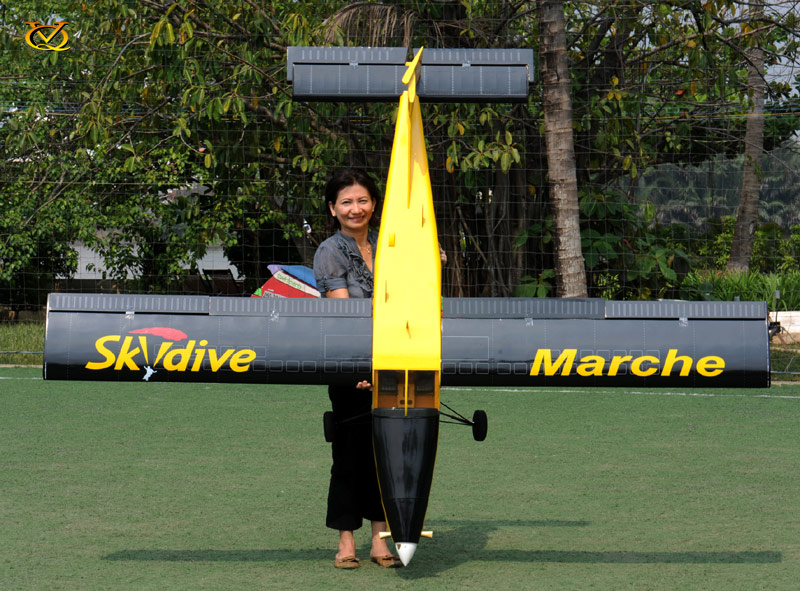

Pilatus PC-6 Porter  (26-30cc size EP/GP -  civilian category)

The Pilatus PC-6 Porter is a single-engined Short Take-Off and Landing (STOL) utility aircraft designed by lt Pilatus Aircraft of Switzerland.

First flown in 1959, the PC-6 continues in production at Pilatus Flugzeugwerke in Stans, Switzerland. It has been built in both piston engine and turboprop powered versions and was produced for a time by Fairchild Hiller in the United States . Total Number build is 581.

 Features:
- All Balsa and lite-ply construction
- Fully covered in weathered detail
- Fiberglass cowling
- Control surfaces pre-hinged and installed
-Two piece wing with aluminium wing joiner

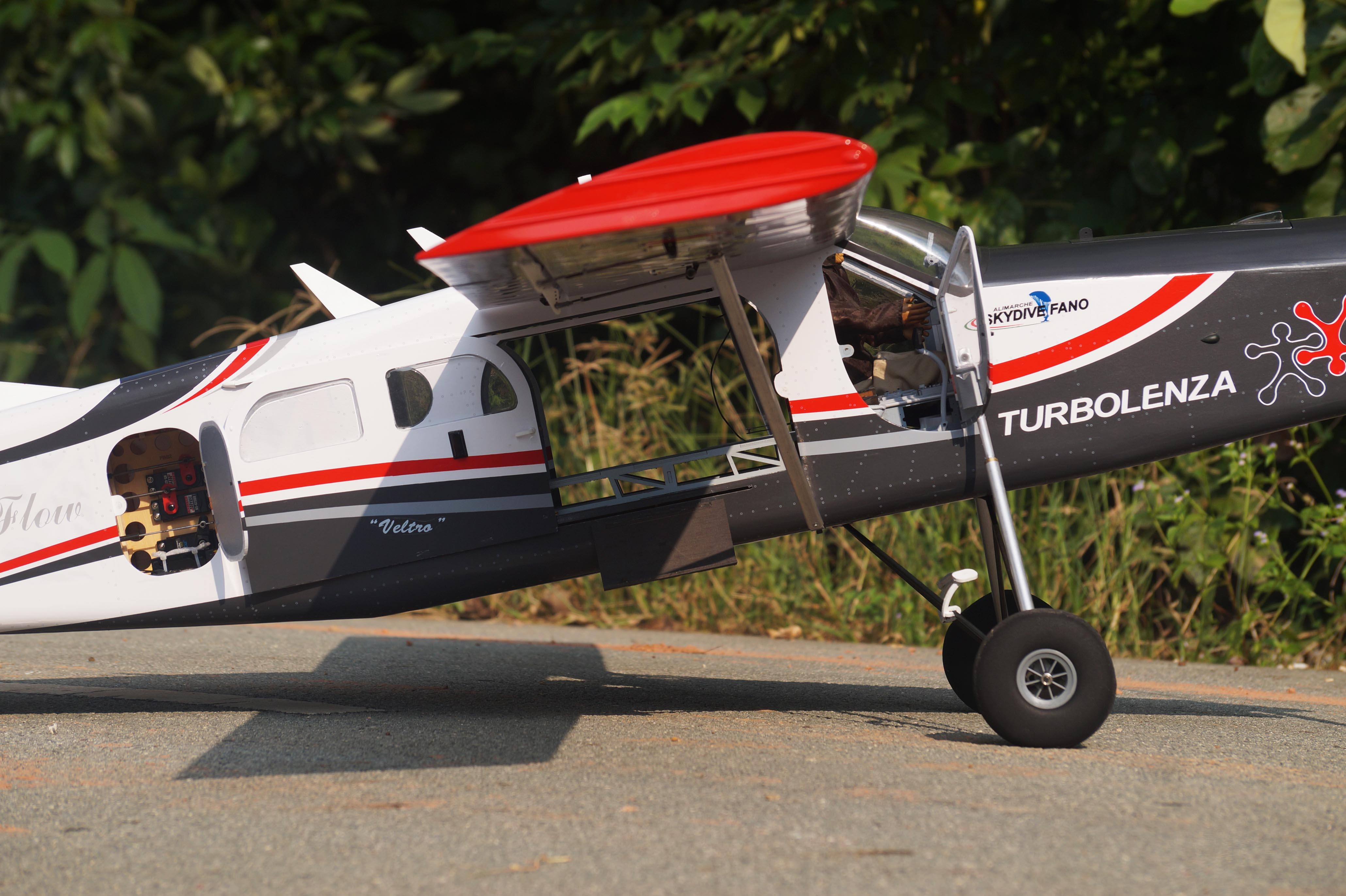

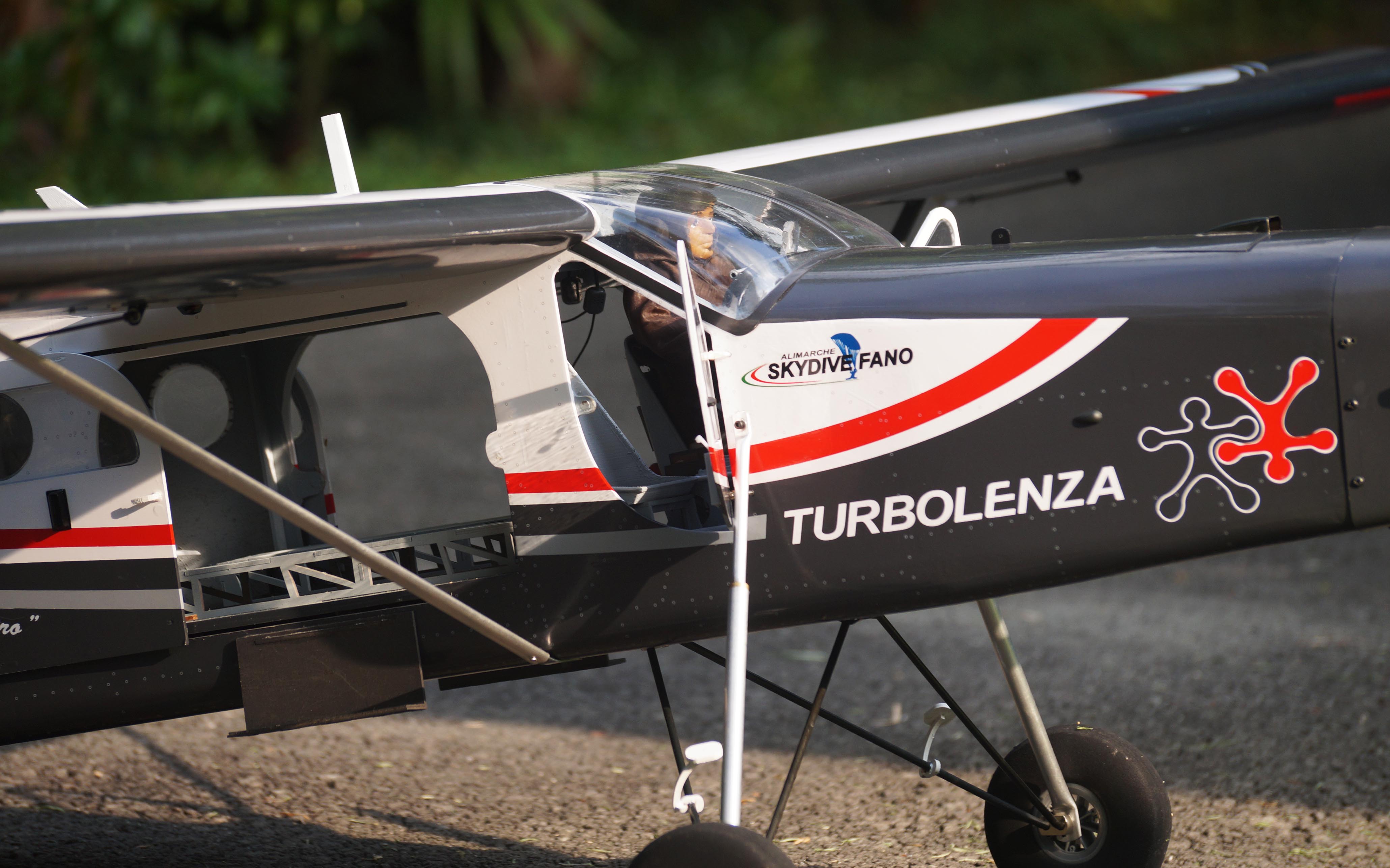

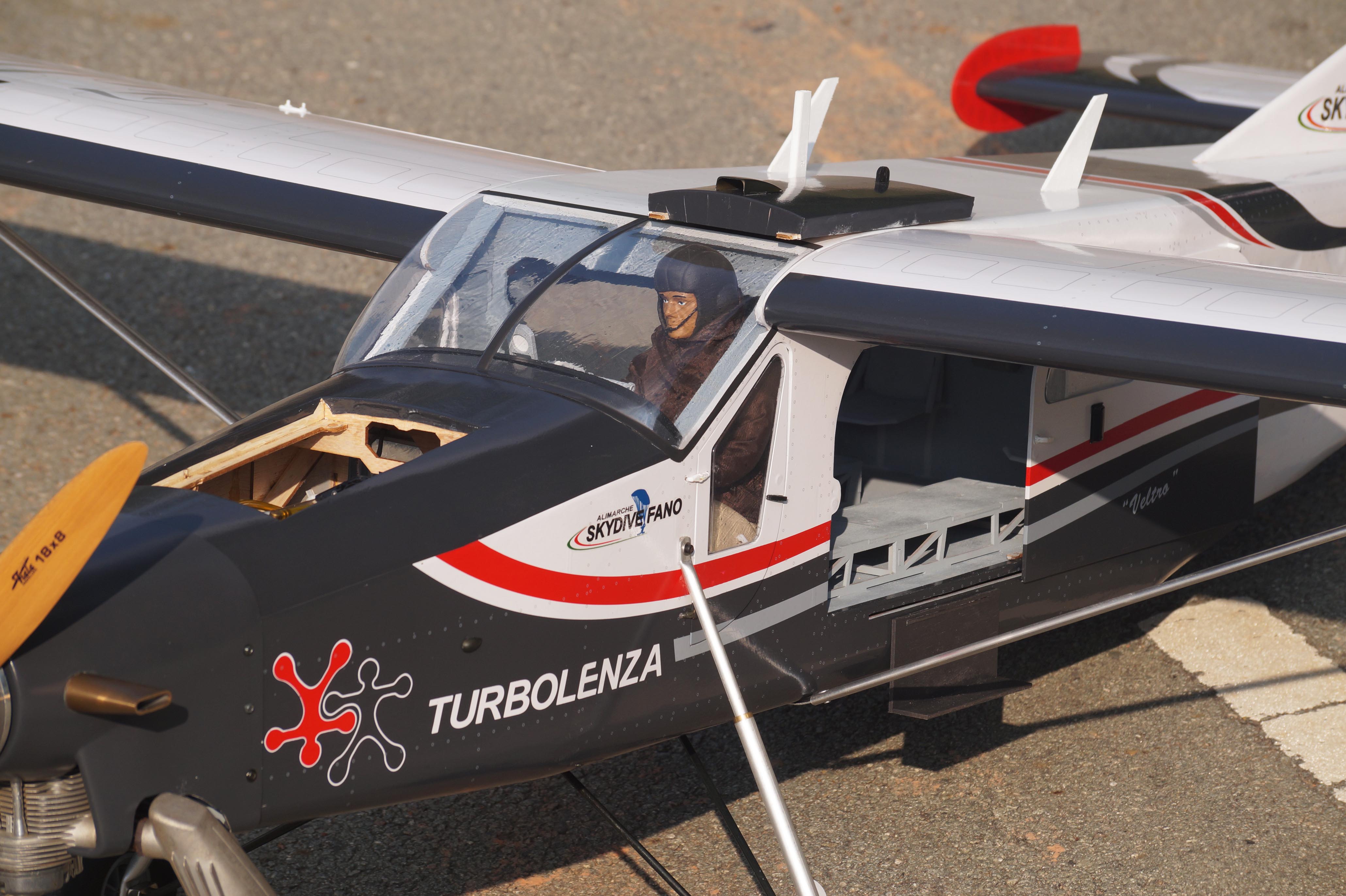

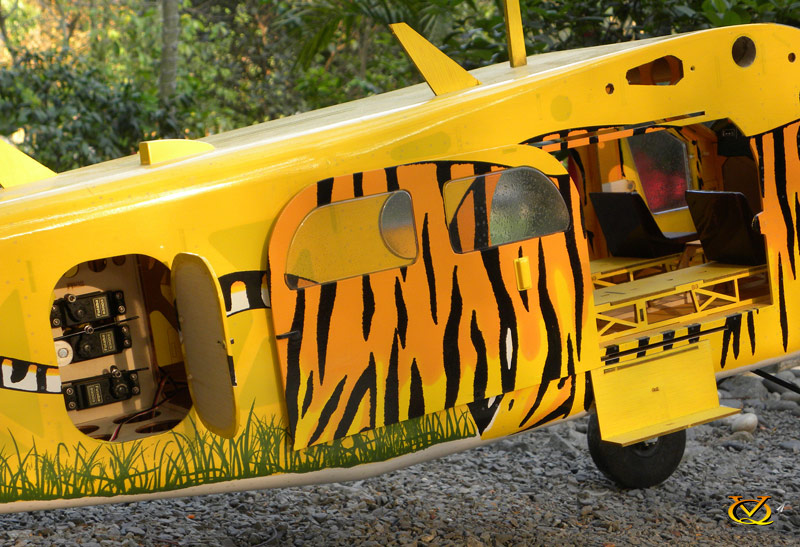

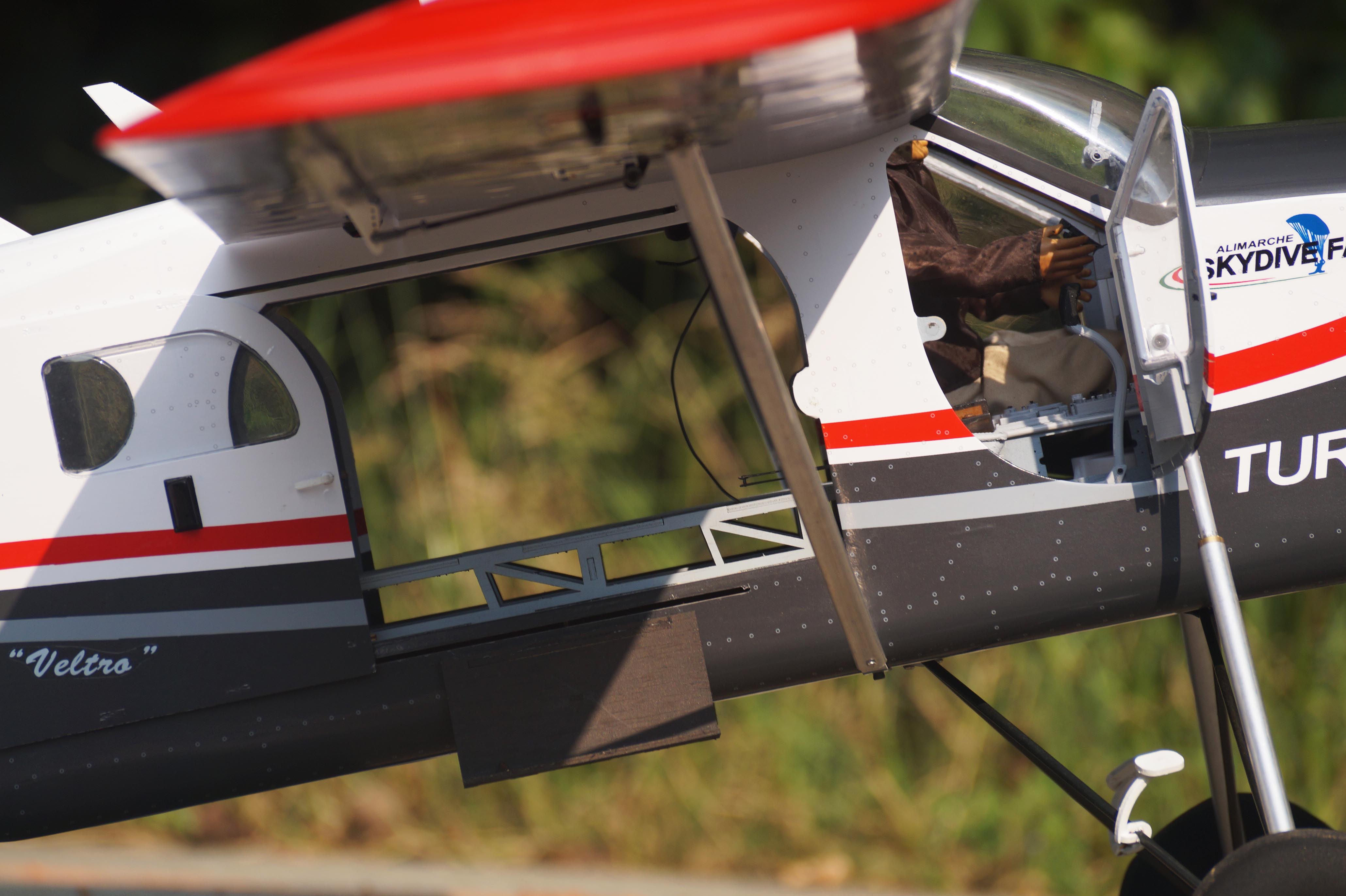

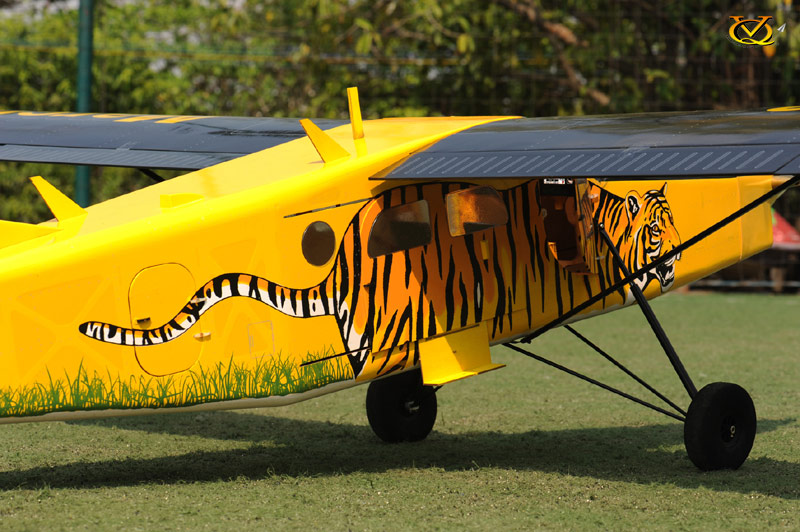

- Pilot door and rear door can open-close
- Big battery hatch for Electric version




 Specifications:
- Wingspan: 2720mm (107in.)
- Fuselage: 2000mm (78.7in.)
- Weight (ready to fly): 6.5 - 7.0 kg
- Gas engine: 26cc - 30cc
- Electric motor: Boost 160 with Lipo 22.2V -
                       5000 mAh x 2
- Radio req: 6 channel / 8 servos


 Includes:
- Assembly instructions with stage photos
- Plywood seat.
- Fiberglass cowling
- Aluminium landing gear , & Wheels
- Landing Struts
- Aluminium wing joiner
- Wing struts
- Engine mounts
- Spinner
- Fuel tank
- Decals and all hardware

Does not include: radio, motor, glue, and silicon fuel line

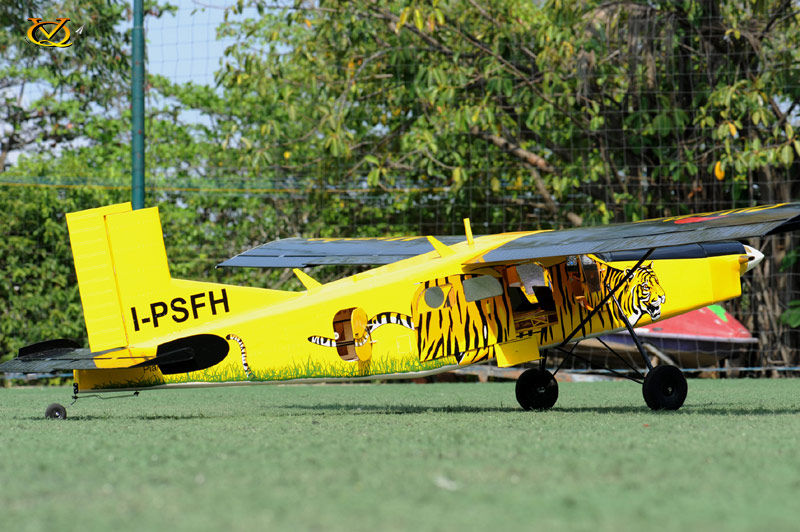

Product code: VQA057 (Tiger)     VQA057RC (Ready to cover vers.)

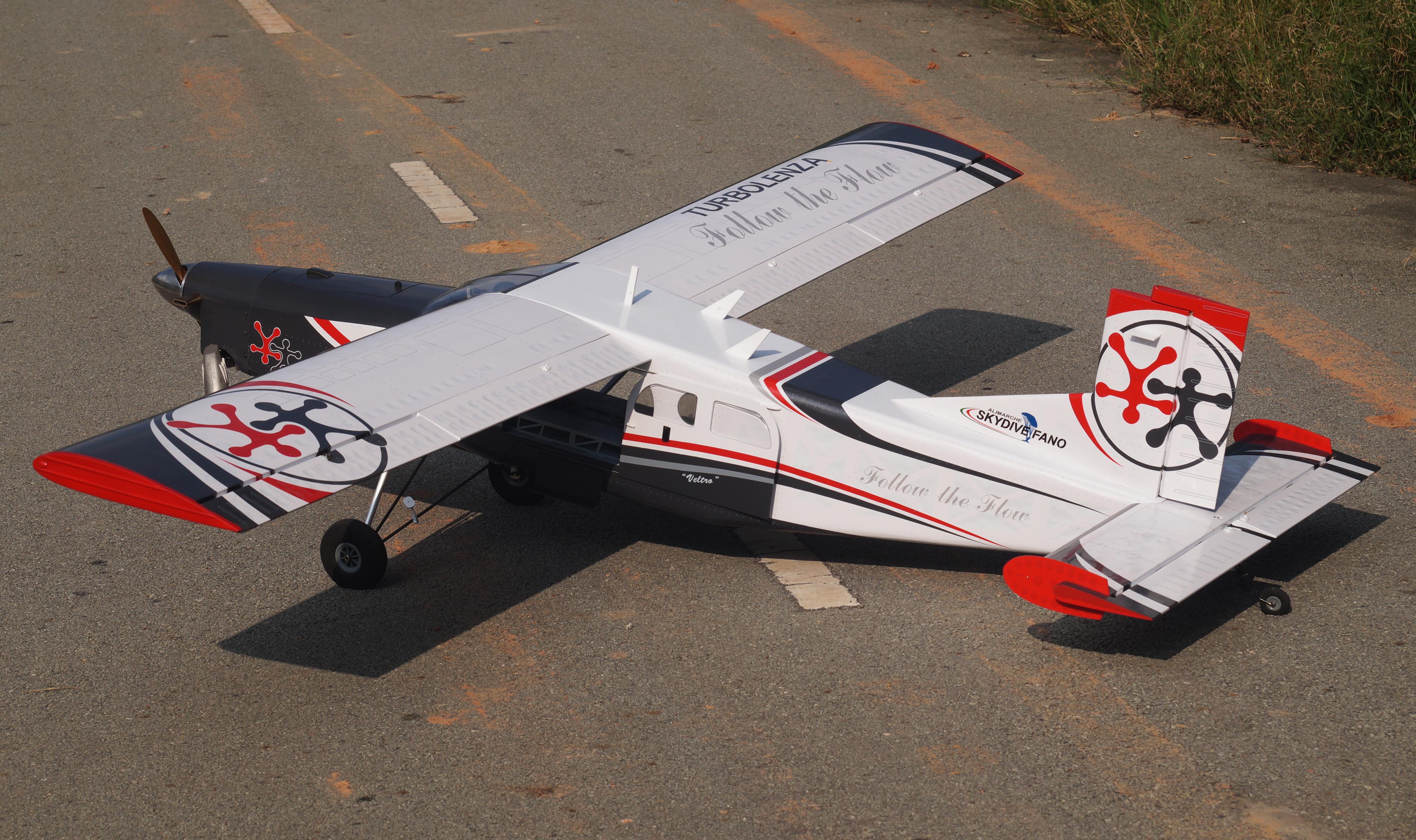

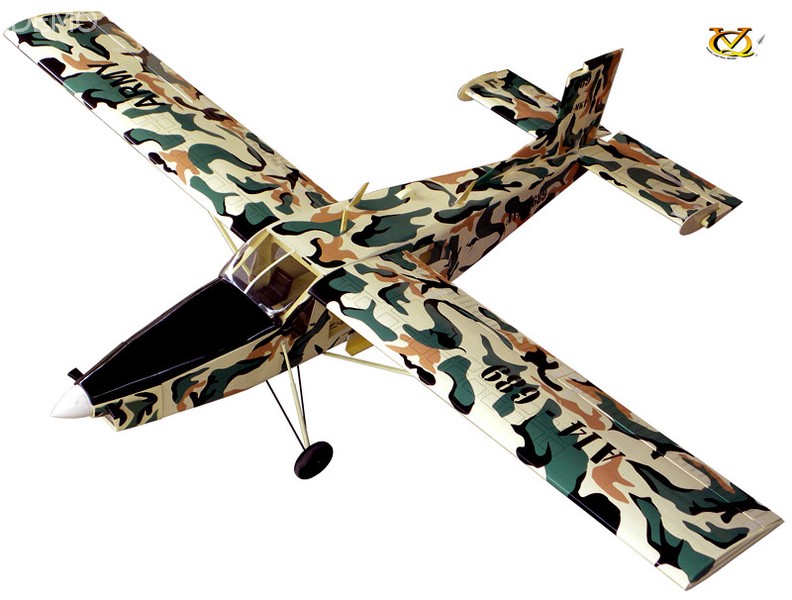

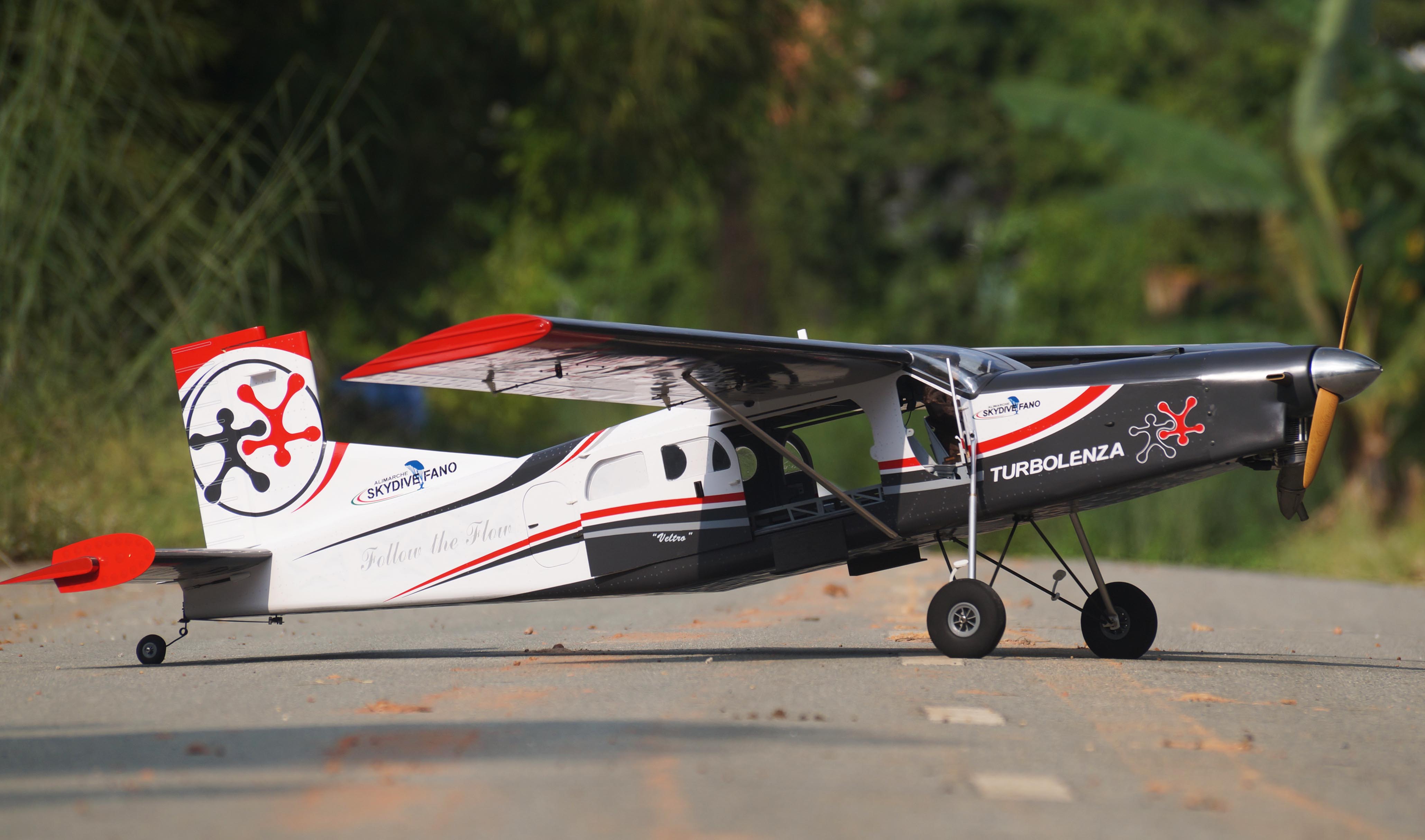

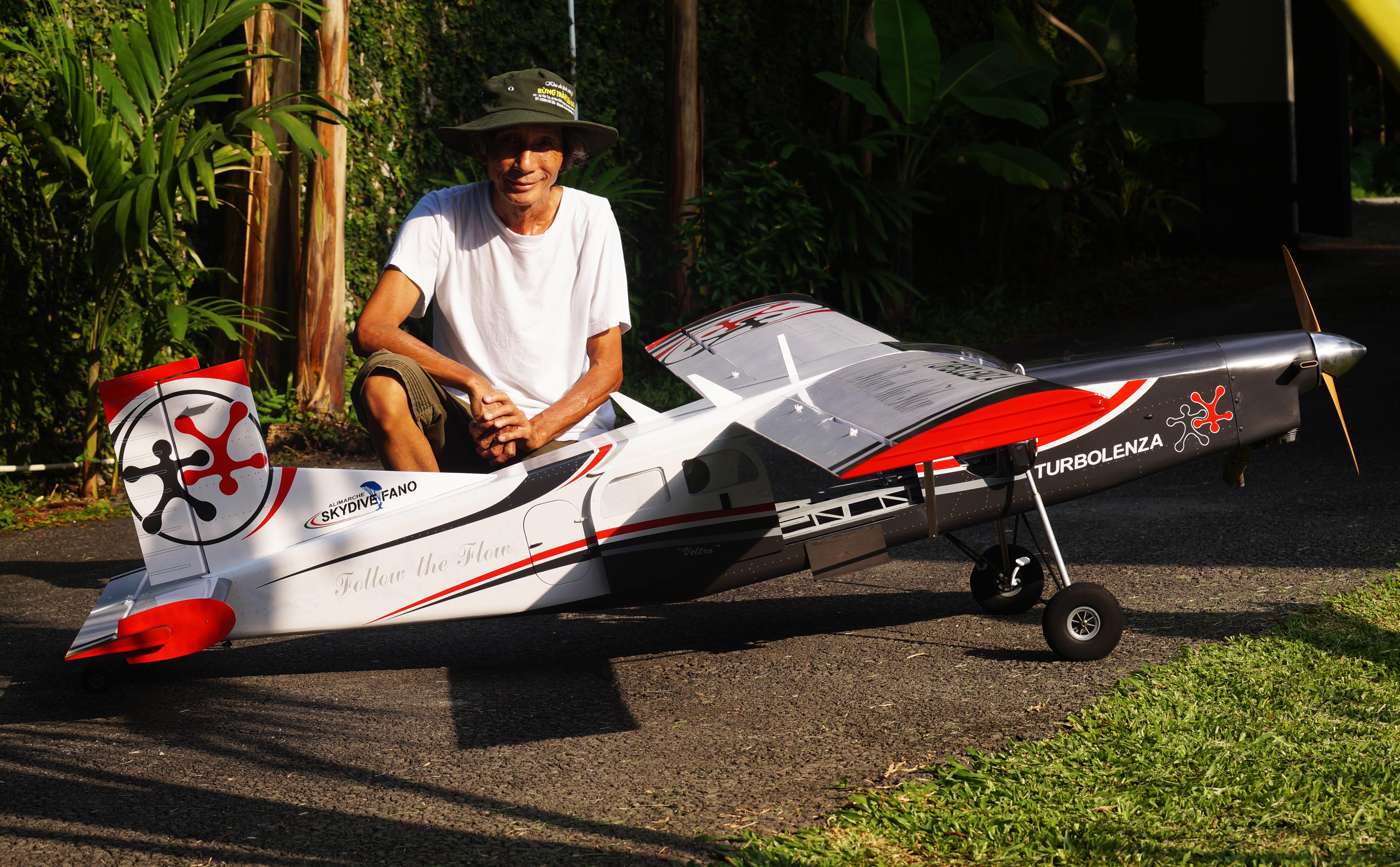

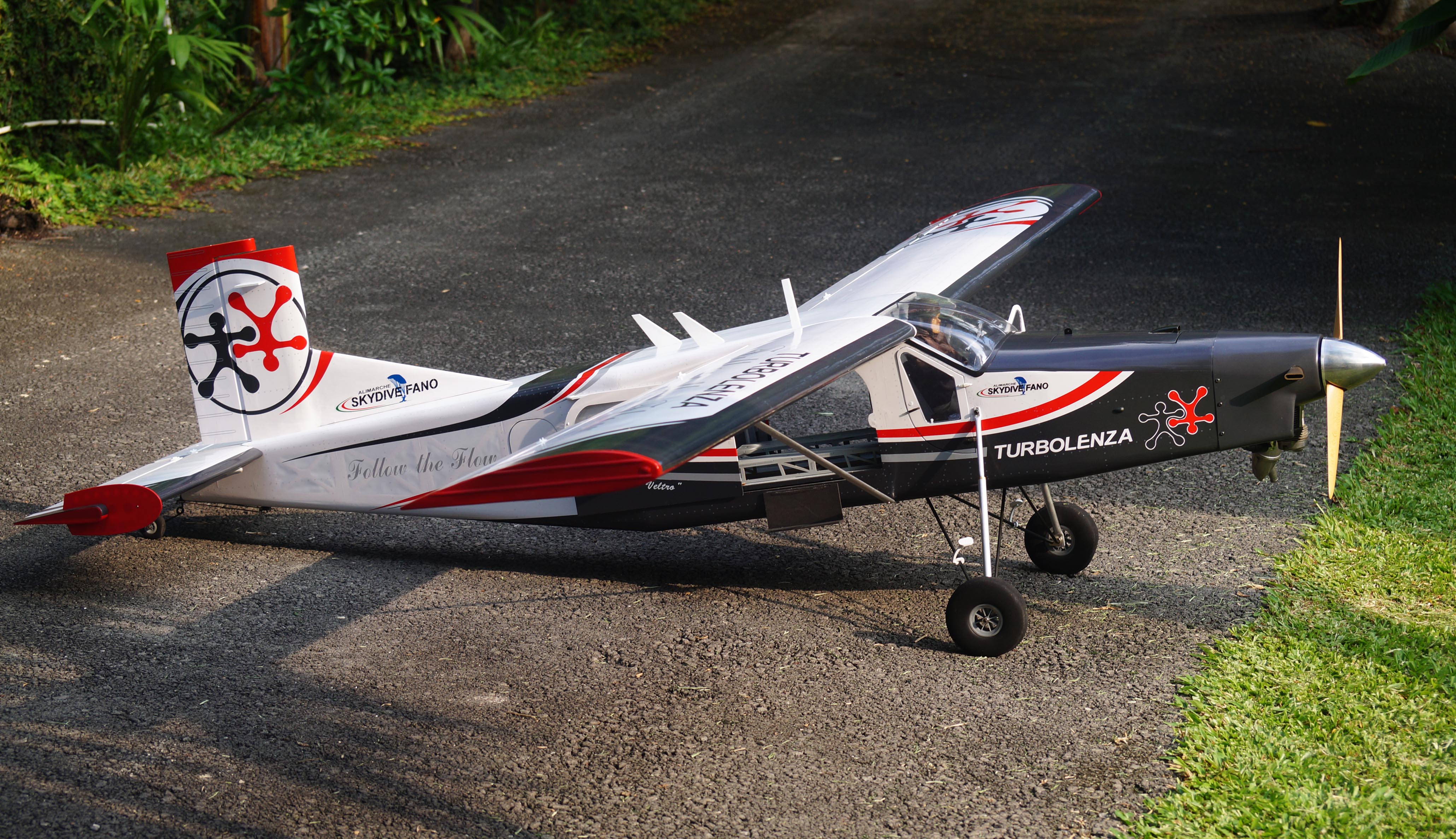

                   VQA0571 (Military vers.)   VQA0572 (Bird vers.)   VQA0573 (Swiss vers.)   VQA0575 ( Turbo Lenza version )
