 F4U Corsair       (120 size EP-GP)

The Vought F4U Corsair is an American fighter aircraft that saw service primarily in World War II and the Korean War . Designed and initially manufactured by Chance Vought , the Corsair was soon in great demand The Corsair was designed and principally operated as a carrier-based aircraft , and entered service in large numbers with the U.S. Navy and Marines in World War II. It quickly became one of the most capable carrier-based fighter-bombers of the war. Some Japanese pilots regarded it as the most formidable American fighter and U.S. naval aviators achieved an 11:1 kill ratio .

VQ Model introduces the F4U Corsair in the most popular size ( 120 size ) . You have a lot of power options, from nitro 2-stroke 120 (OS.120 AX) , nitro 4-stroke 125-150 ( Saito FA-125 / FA-150) , gas 21-25 cc, electric motor (Boost 100) and even fit with Saito FG-33R3 Radial engine . And with lots of scale details like the WWII US Navy Pilot , Rocket , Subtank ... All will make your F4U Corsair the most scaled warbird in your flying field .

 Features:
- All balsa and lite-ply construction
- Fiberglass cowling
- Control surfaces pre-hinged and installed
- Fully covered in wheatered detail
- Scale Navy Pilot
- 3D printed Rocket
- All main gear door operation

 Specifications:
- Wingspan: 1810mm
- Fuse Length: 1390mm
- Weight: 6,3-6,7 kg
- Nitro Engine required : 120 - (2 stroke) or 120-140 (4 stroke)
- Gas Engine required : 20-26cc -2 stroke or 21-30cc - 4 stroke

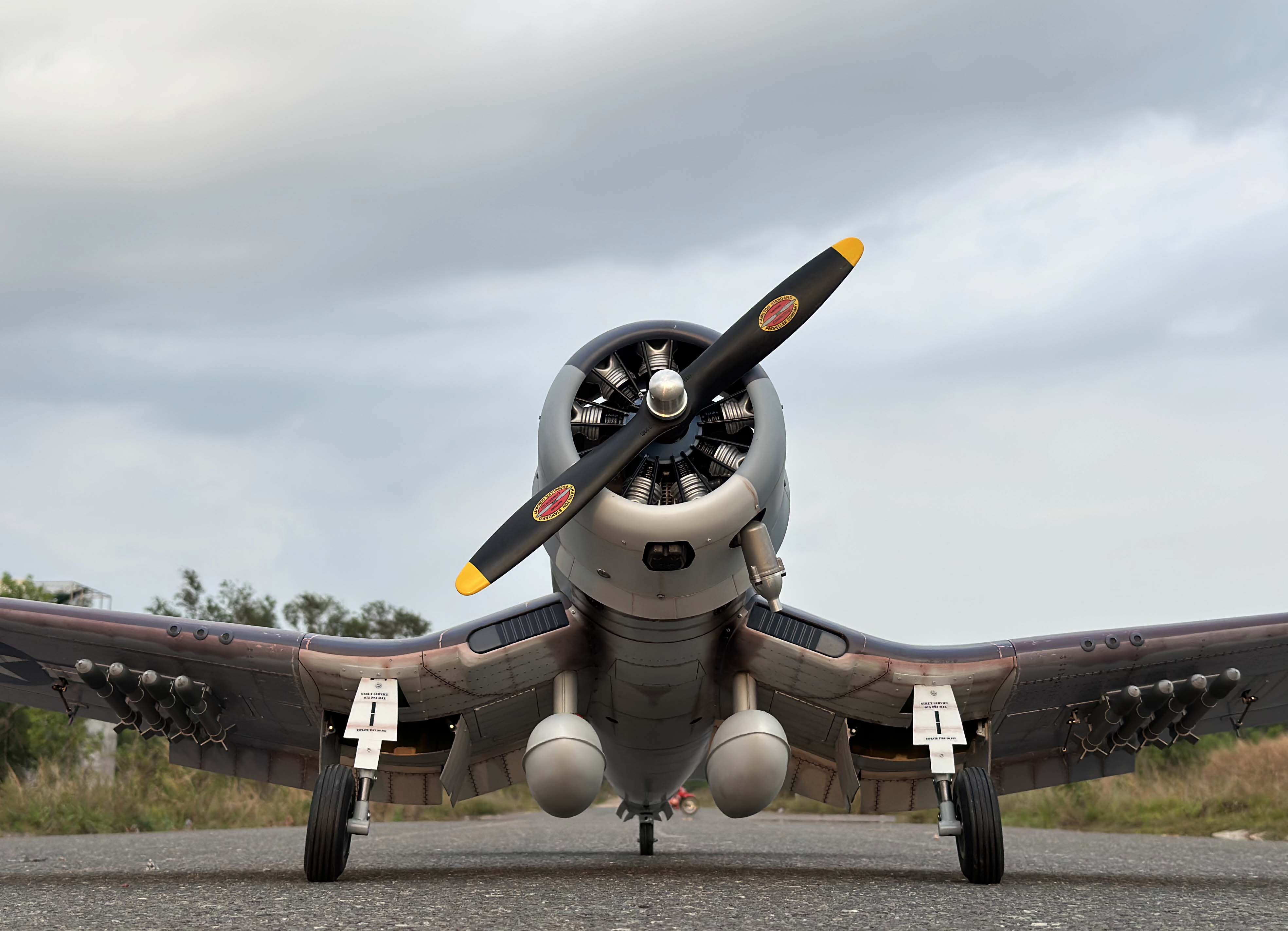

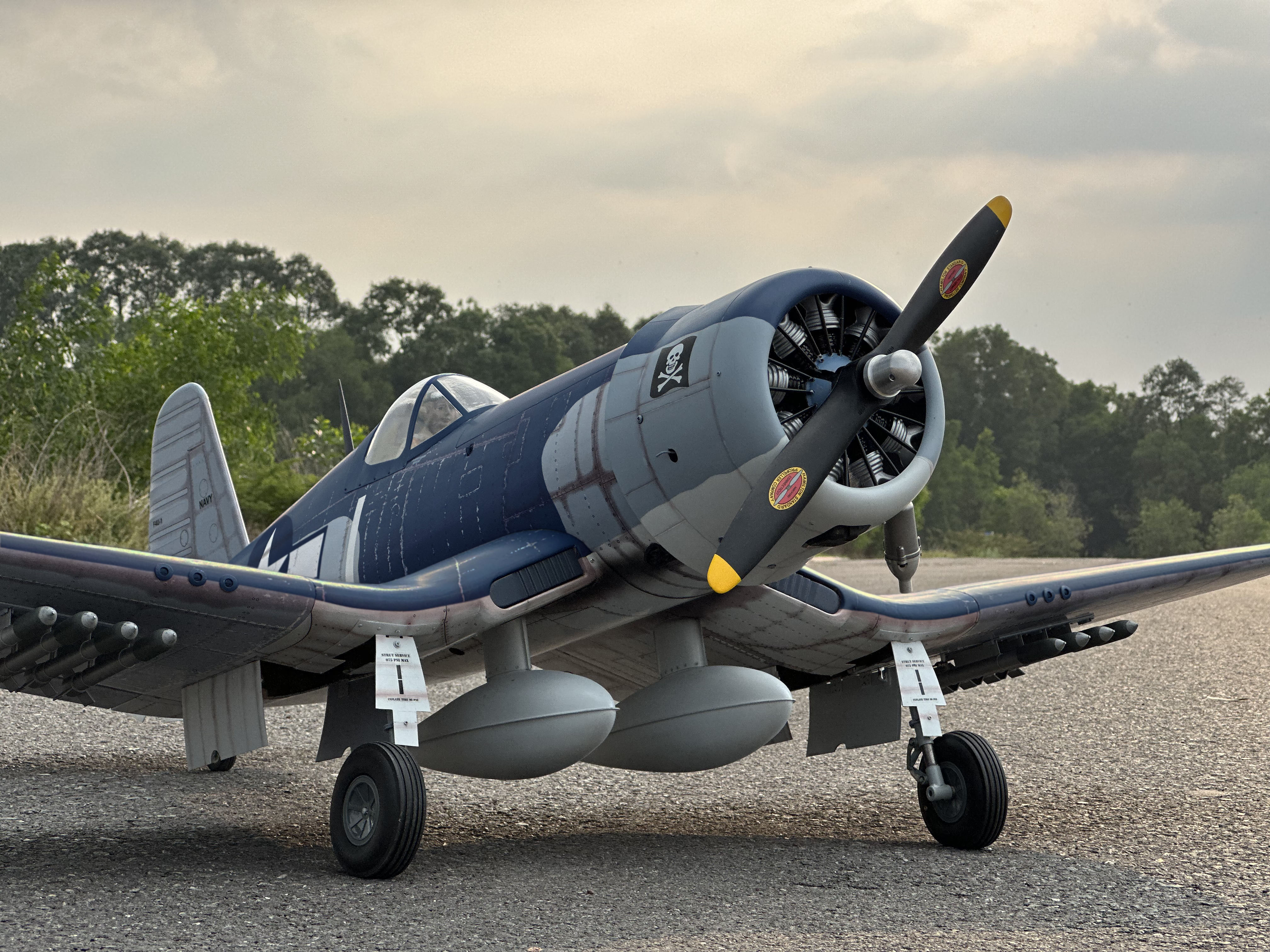

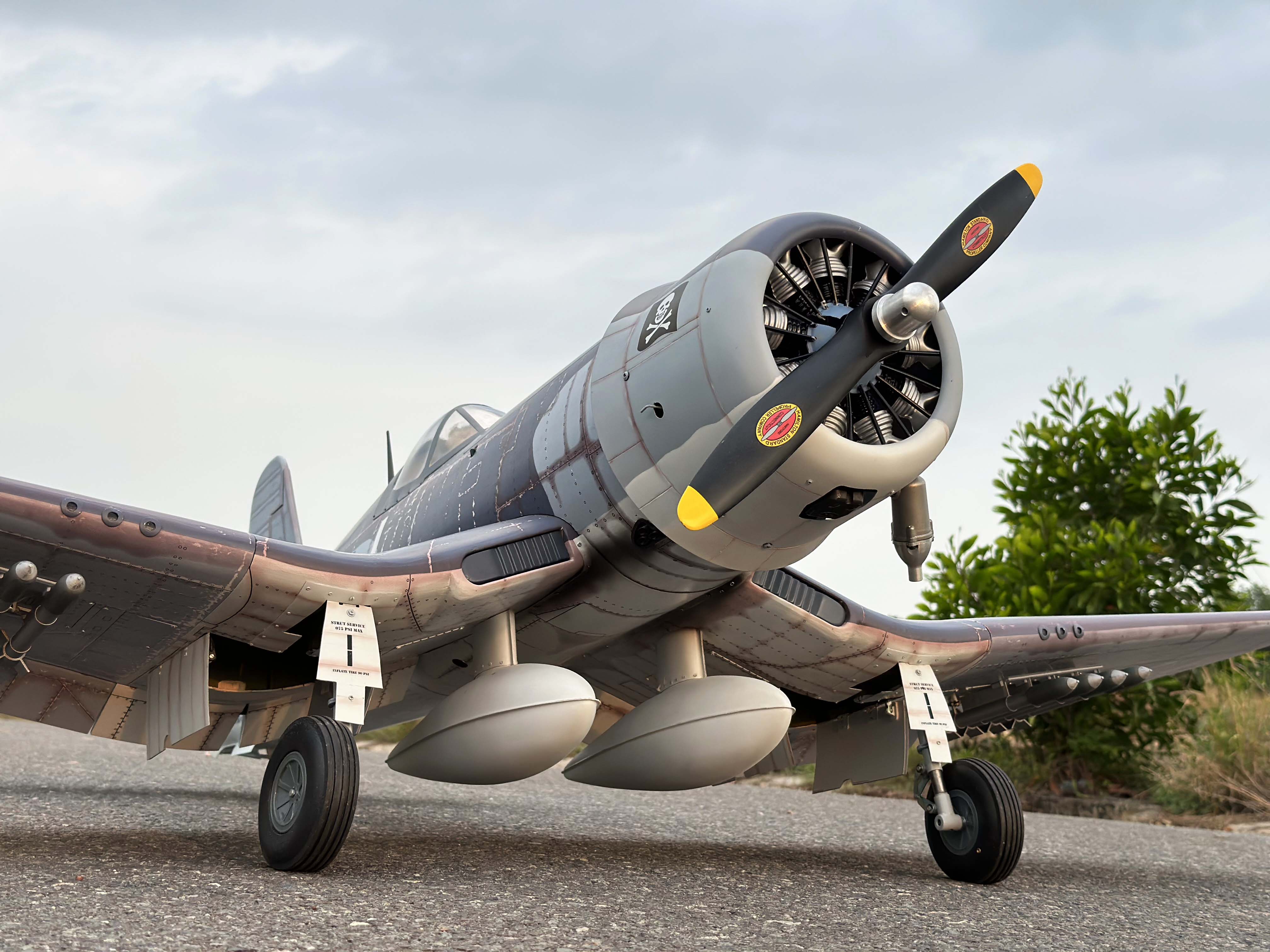

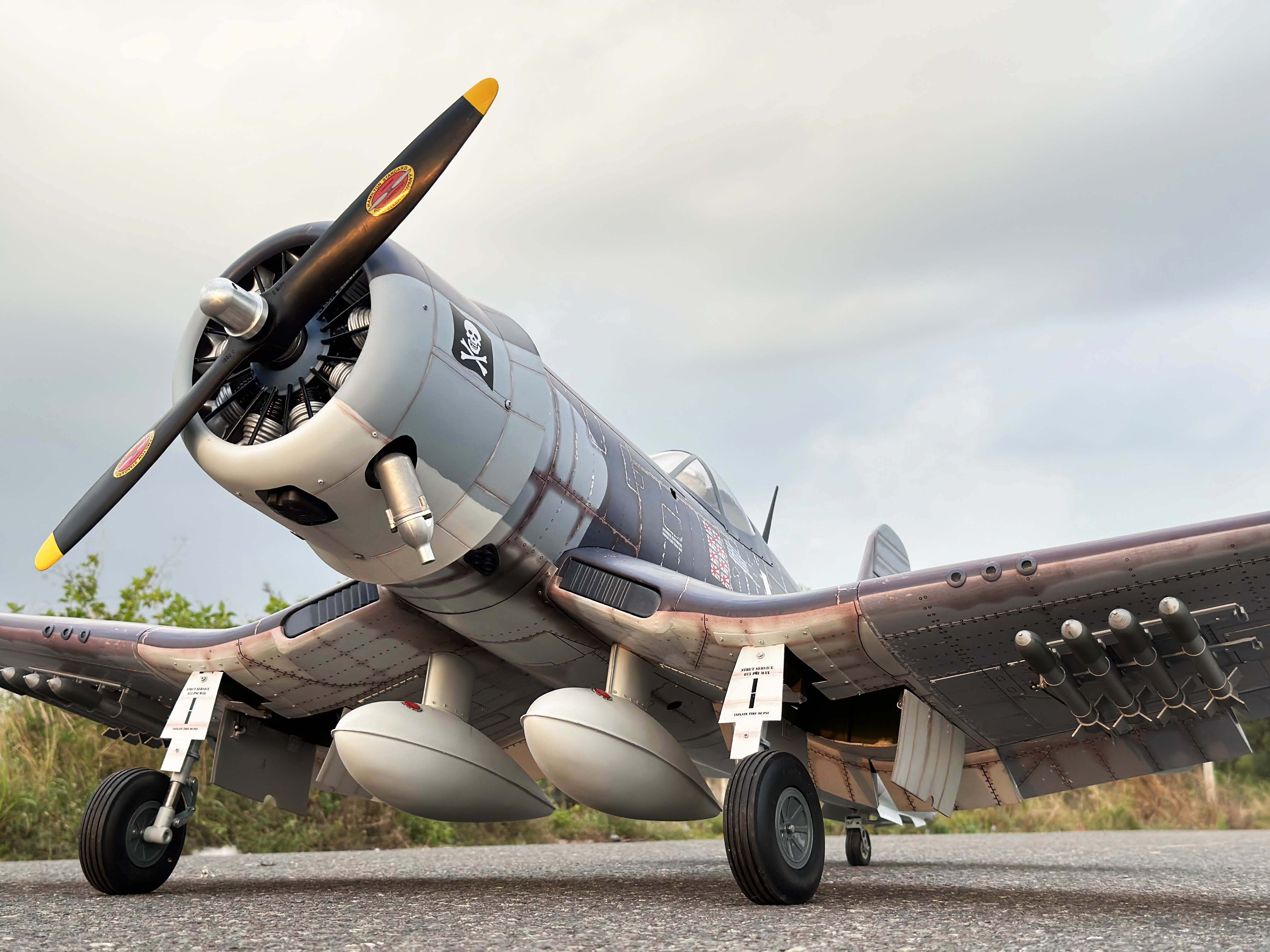

- Radial Engine : Saito FG-33 R3 or FA-200 R3
- Electric Motor : Boost 100
- Battery : Lipo 6S 6000 mAh
- Propeller : 17 x6 – 19 x6
- Radio req : 9 channels with 12 servos Standard servo ( Hitec HS- 625MG : 2x Aileron , 2xElevator , 1x Rudder 17 grams servo ( Hitec HS-85MG / Emax ES3054) : 4x Flaps , 2 x main gear door, ( 1 x throttle for engine )

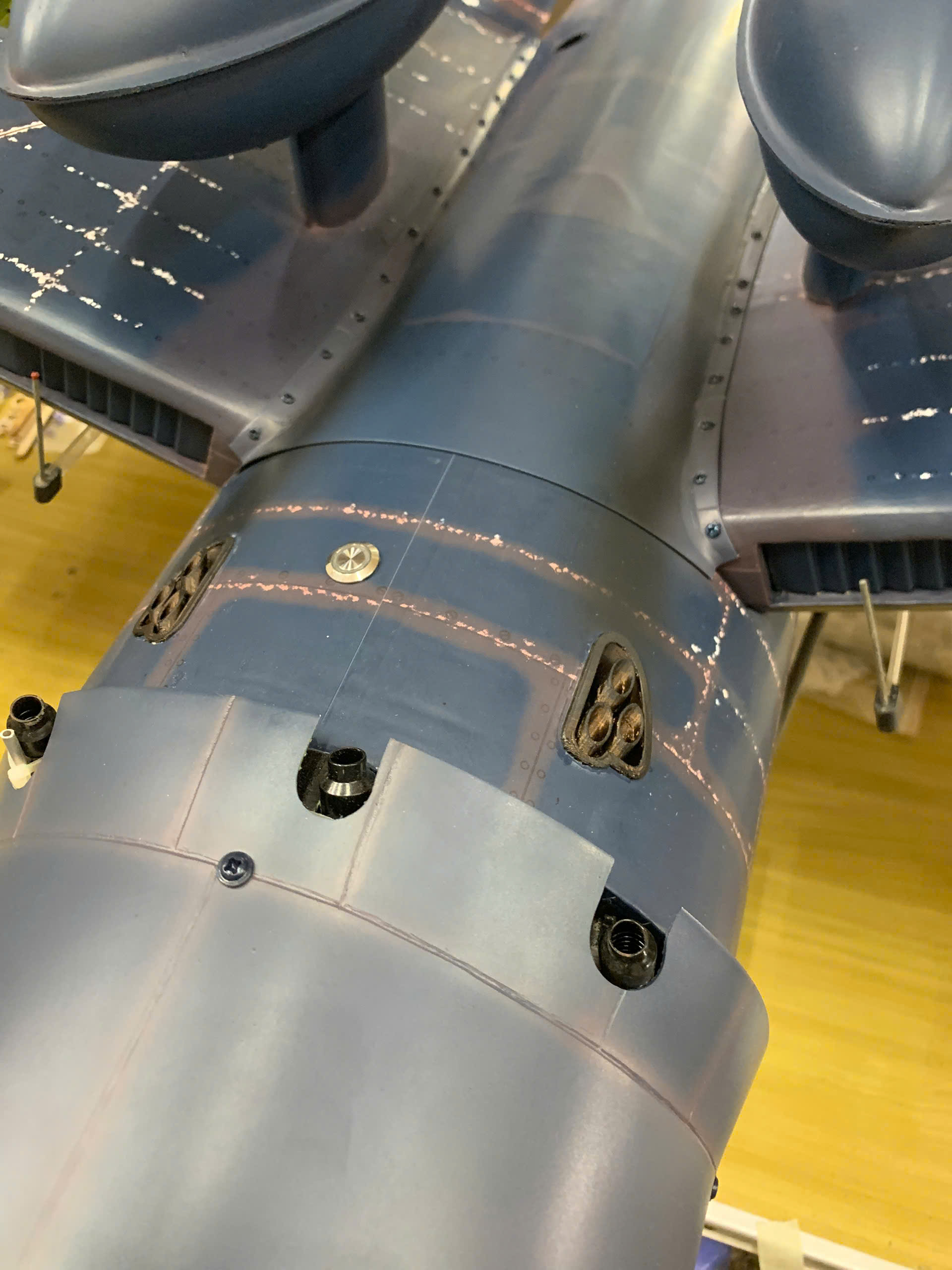

- Cowl Dimension : Diameter : 215mm Length : 164mm

 Includes:
- Gear assembly
- Wheels
- Engine mounts
- Fuel tank
- Fiberglass cowling
- Aluminium wing joiner
- Decals and all hardware
- Assembly instructions with stage photos

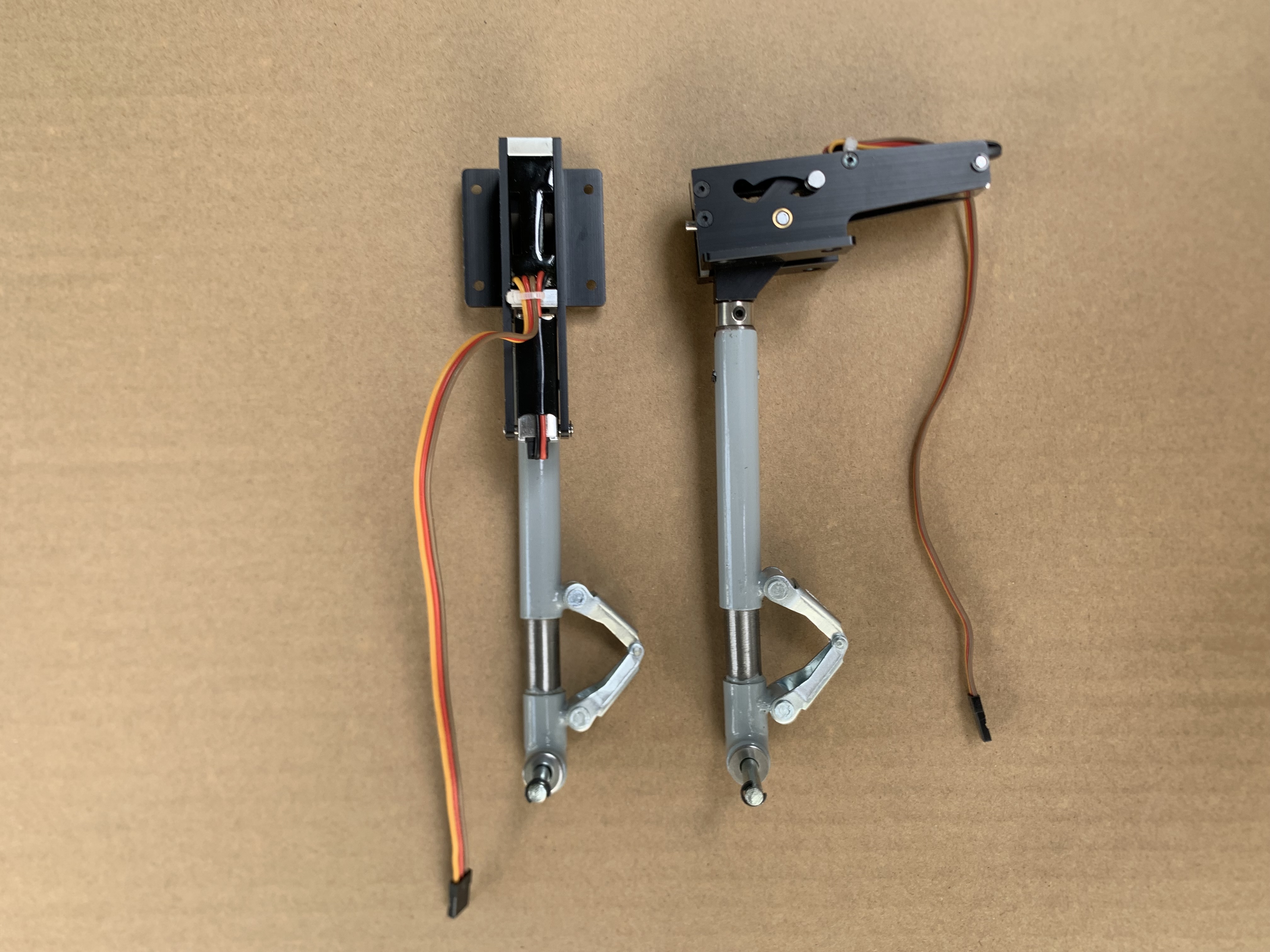

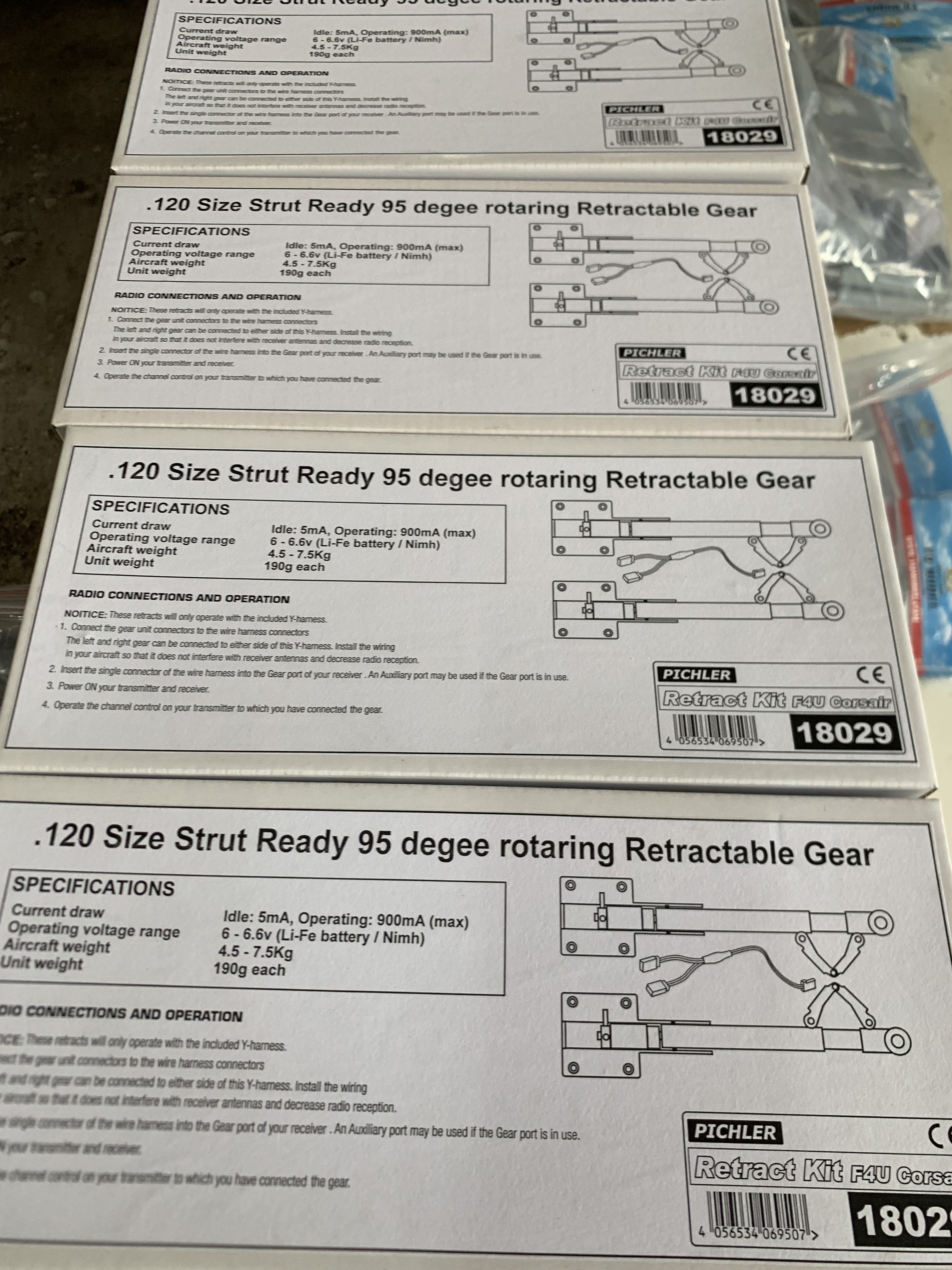

- Option :95 Degree Aluminium Rotating Electric Retracts with Scale struts (VQ-ARE34)


Does not include: radio, motor, glue, and silicon fuel line

Product code : 1/VQA170BY (Blue-Yellow version)   2/VQA170CM (Camo "Big Hog" version)

Download instruction guide here

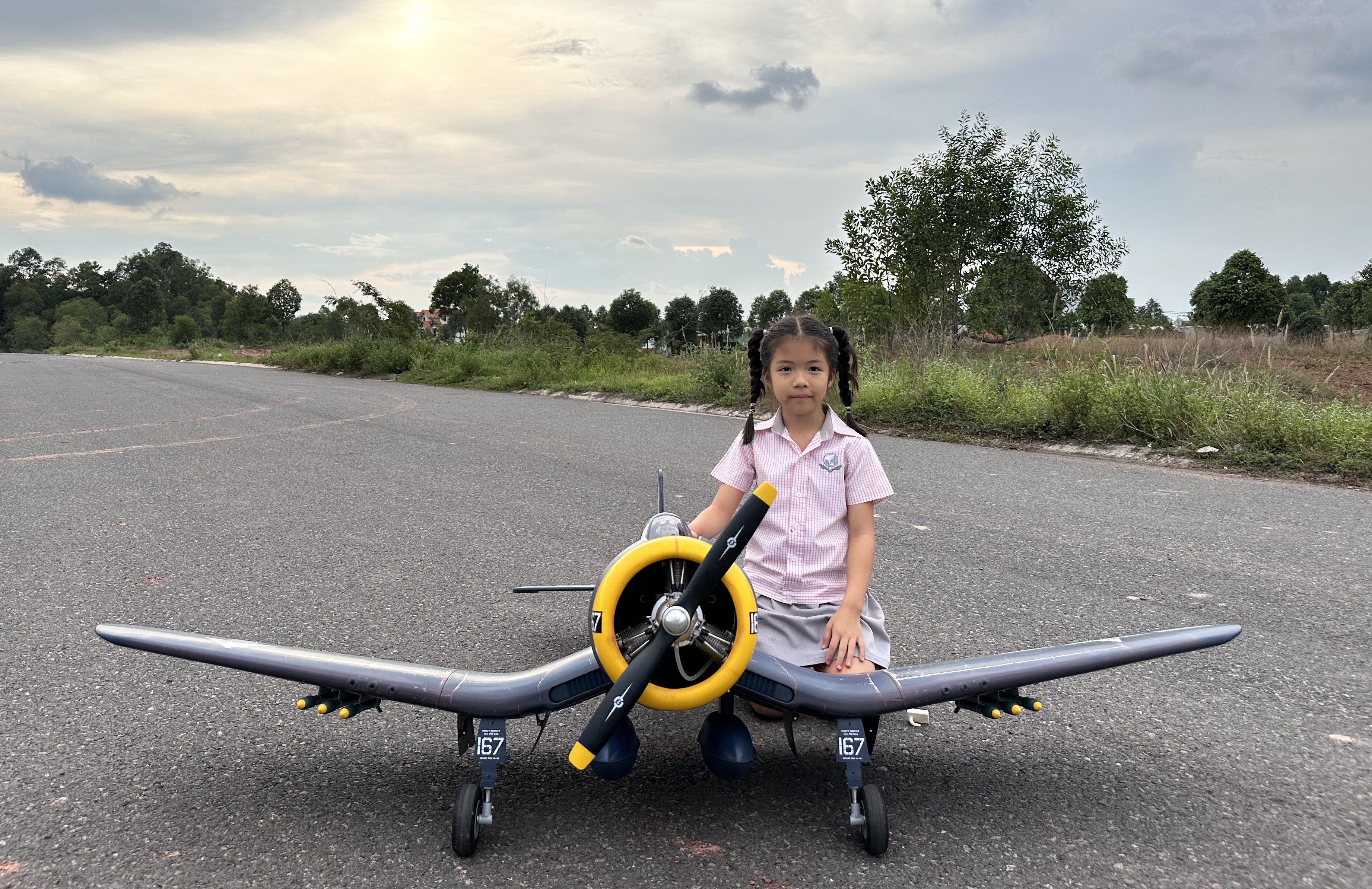

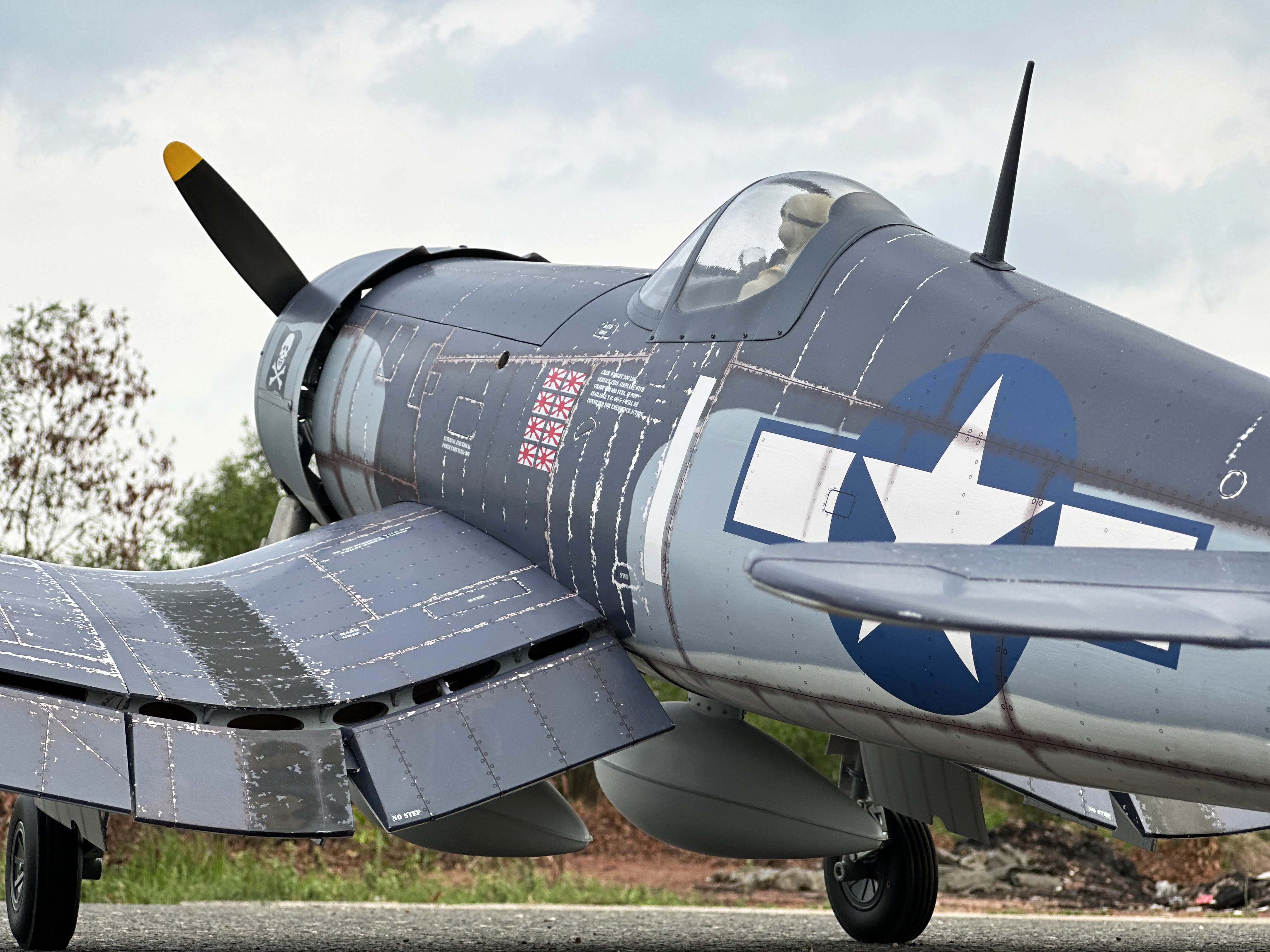

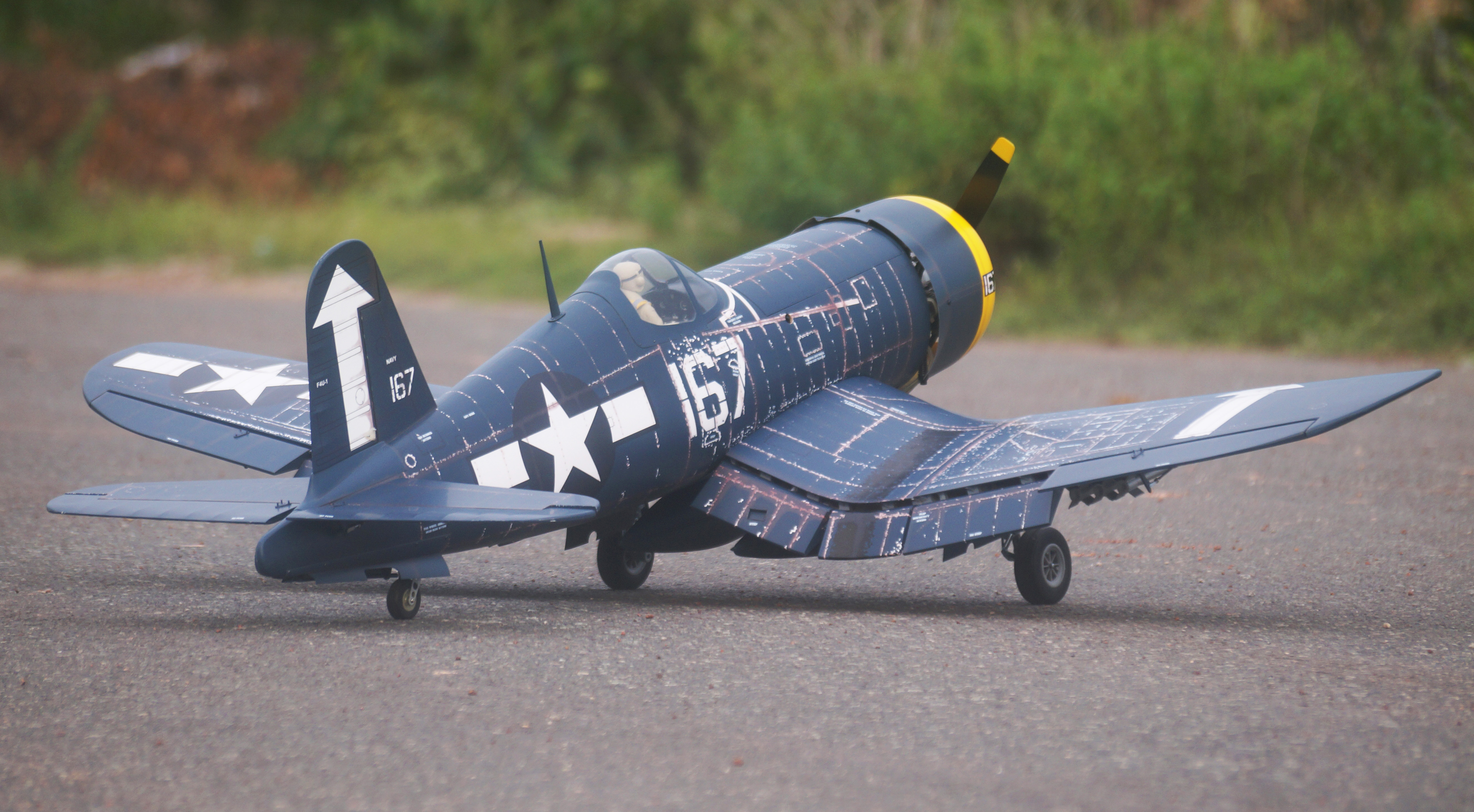

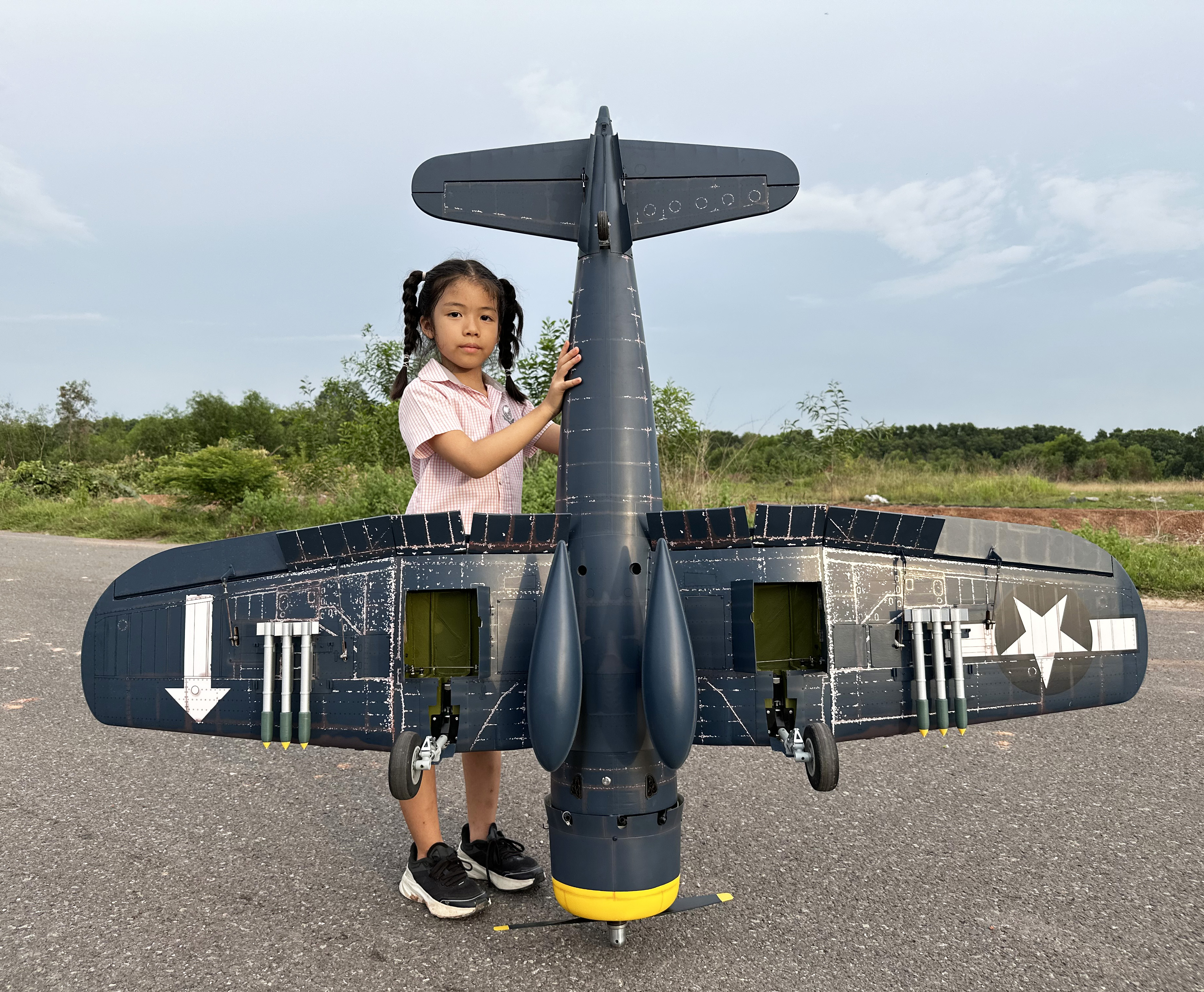

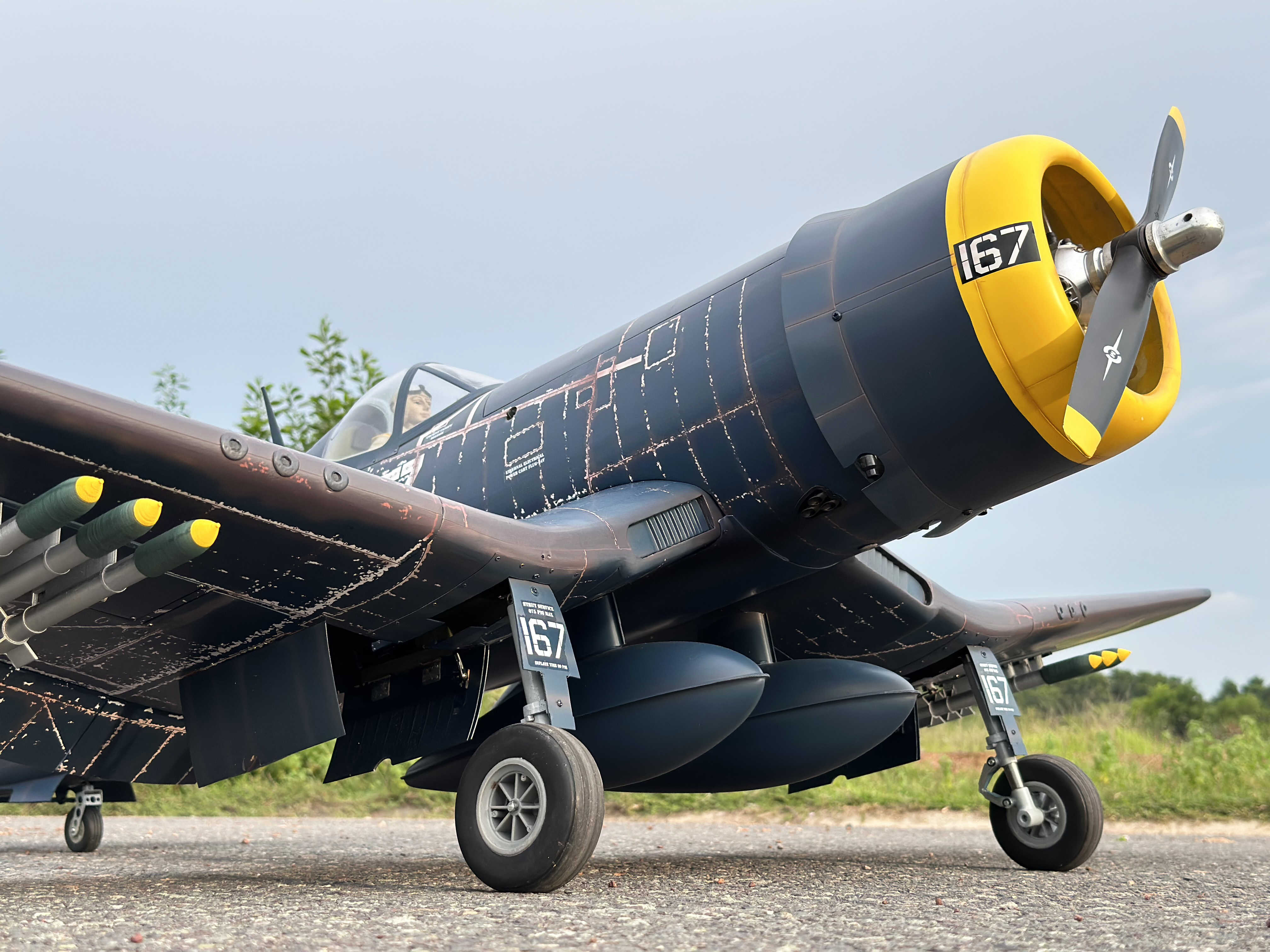

Photo gallery
