 Fokker D.VII       (120 size EP-GP)

The Fokker D.VII was a German World War I fighter aircraft designed by Reinhold Platz of the Fokker-Flugzeugwerke. Germany produced around 3,300 D.VII aircraft in the second half of 1918. In service with the Luftstreitkräfte, the D.VII quickly proved itself to be a formidable aircraft. The Armistice ending the war specifically required, as the fourth clause of the "Clauses Relating to the Western Front", that Germany was required to surrender all D.VIIs to the Allies.Surviving aircraft saw much service with many countries in the years after World War I.

VQ Model introduces the Fokker D.VII in the most popular size ( 120 size ) . You have a lot of power options, from nitro 2-stroke 95 – 120 , nitro 4-stroke 125, gas engine 2- stroke from 17-20cc, electric motor (Boost 90). And with lots of scale details like cowl , machine gun , WWI wheel ... All will make your Fokker D.VII the most scaled Fokker D.VII ARF in your flying field .

 Features:
- All balsa and lite-ply construction
- Fiberglass cowling
- Control surfaces pre-hinged and installed
- Fully covered in wheatered detail
- Scale WWI wheel

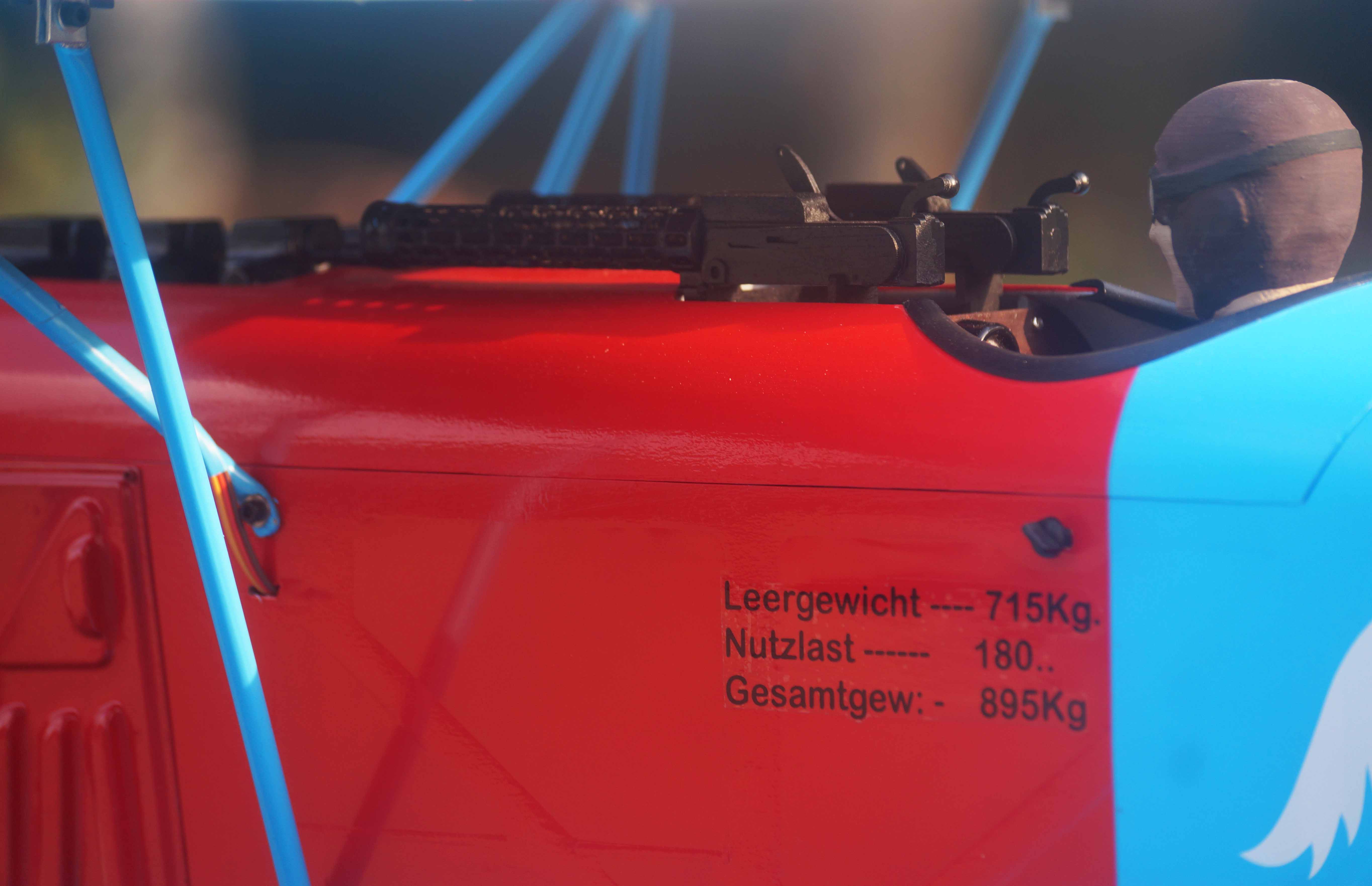

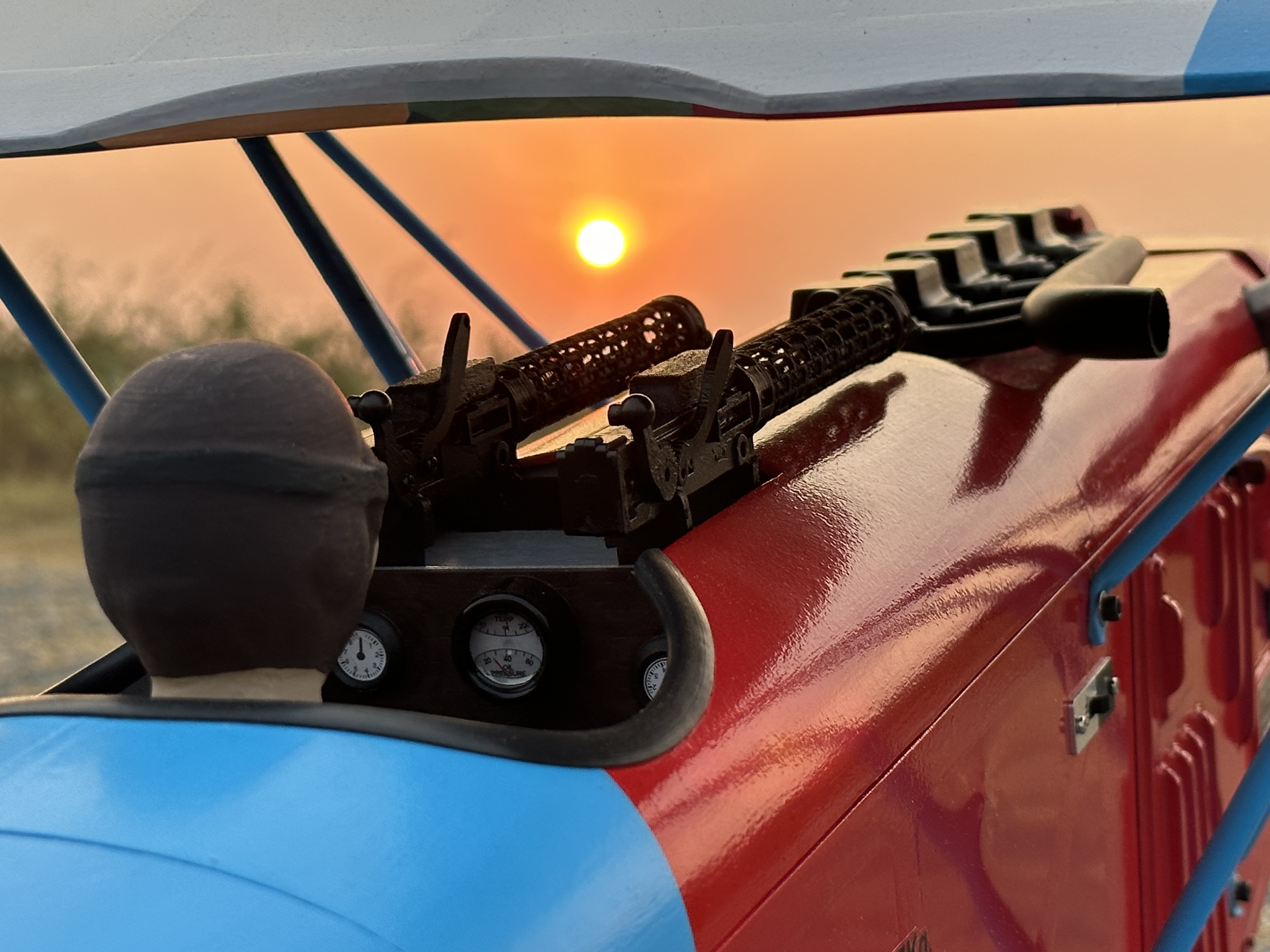

- Scale machine gun

 Specifications:
- Wingspan: 1730mm
- Fuse Length: 1350mm
- Weight: 5,5-5,8 kg
- Nitro Engine required : .95 - (2 stroke) or 125 (4 stroke)
- Gas Engine required : 17-20cc -2 stroke or 21cc -4 stroke
- Electric Motor : Boost 90 - KV=280
- Battery : Lipo 6S 5500 mAh
- Propeller : 16x6 (for engine) – 18 x8 ( for electric motor )
- Radio req : 6 channels with 6 servos Standard servo : 2x Aileron , 2x Elevator , 1x Rudder , 1 x Throttle

 Includes:
- WWI Scale Wheels
- Engine mounts
- Fuel tank
- Aluminium wing joiner
- Decals and all hardware
- Assembly instructions with stage photos


Does not include: radio, motor, glue, and silicon fuel line

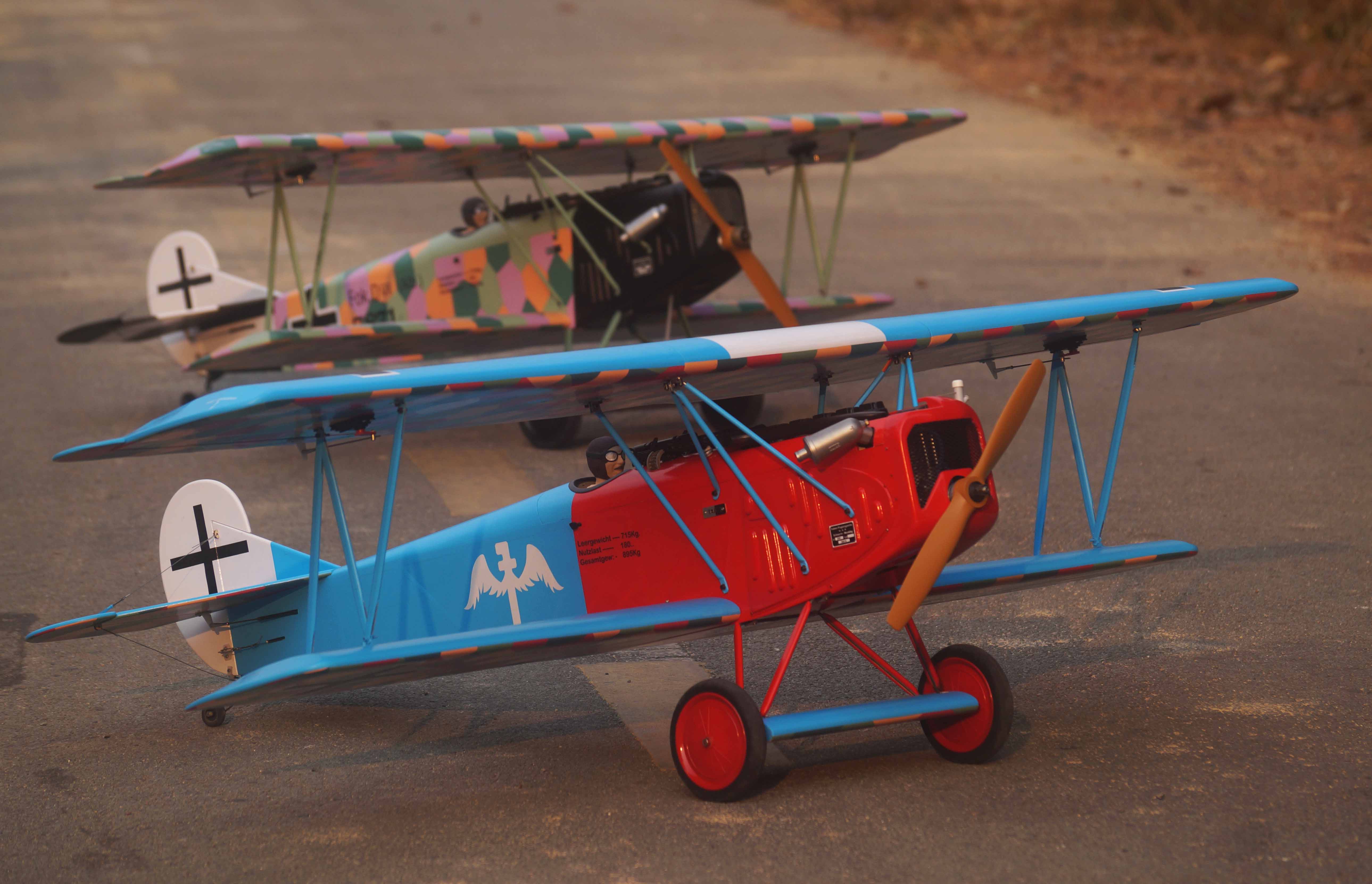

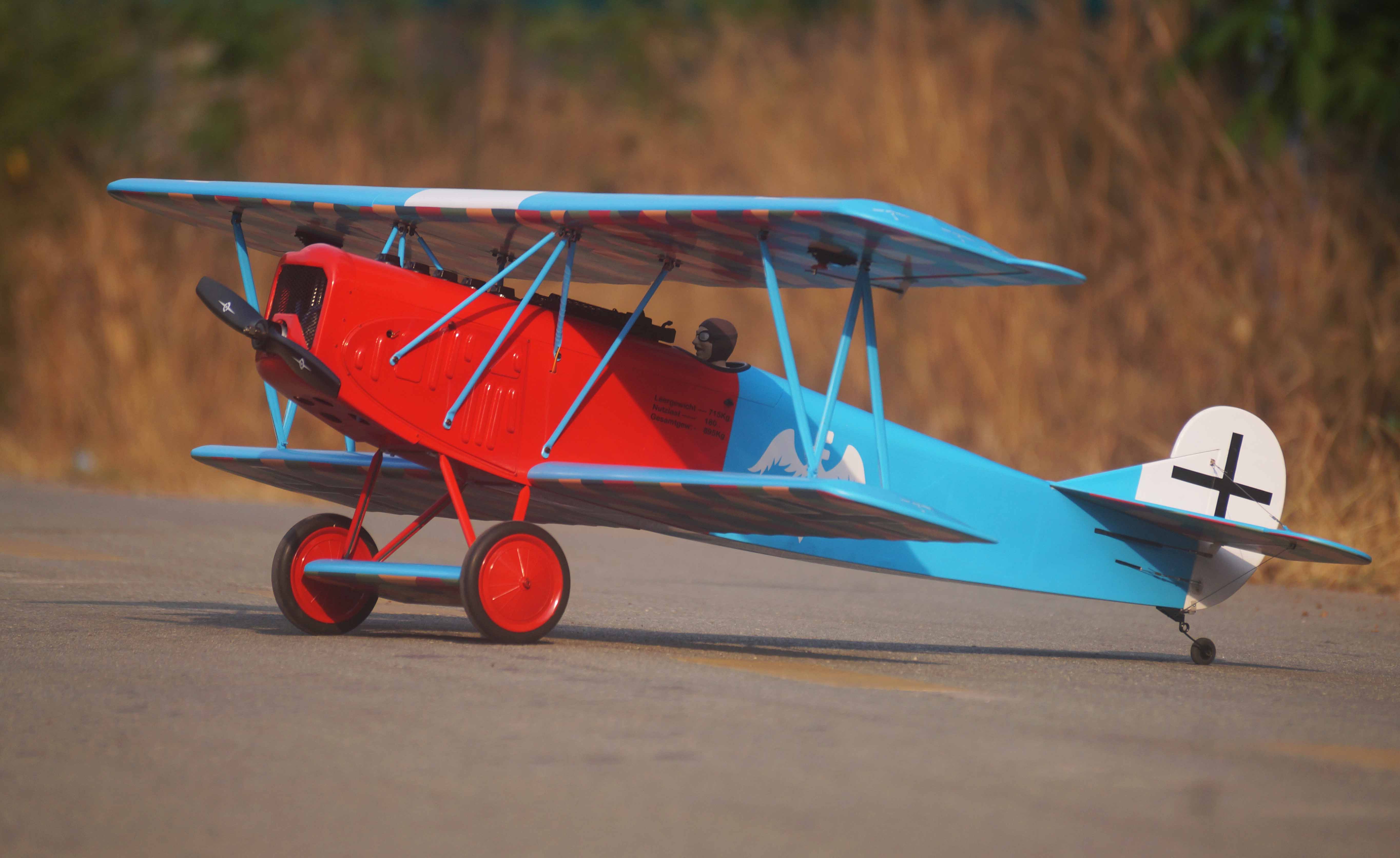

Product code : 1/VQA167BW (Black-White version)   2/VQA162RB (Red-Blue version)

Download instruction guide here

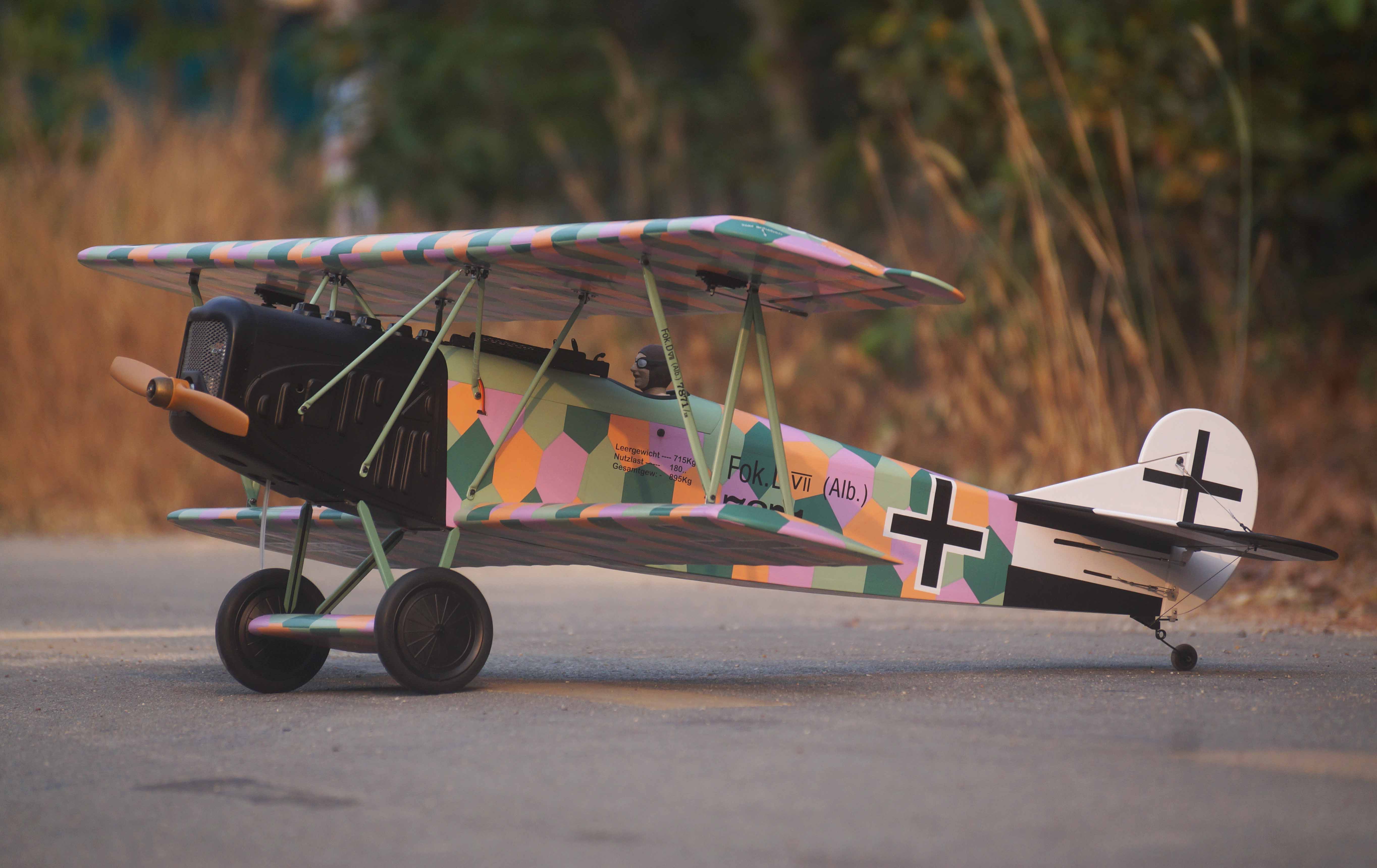

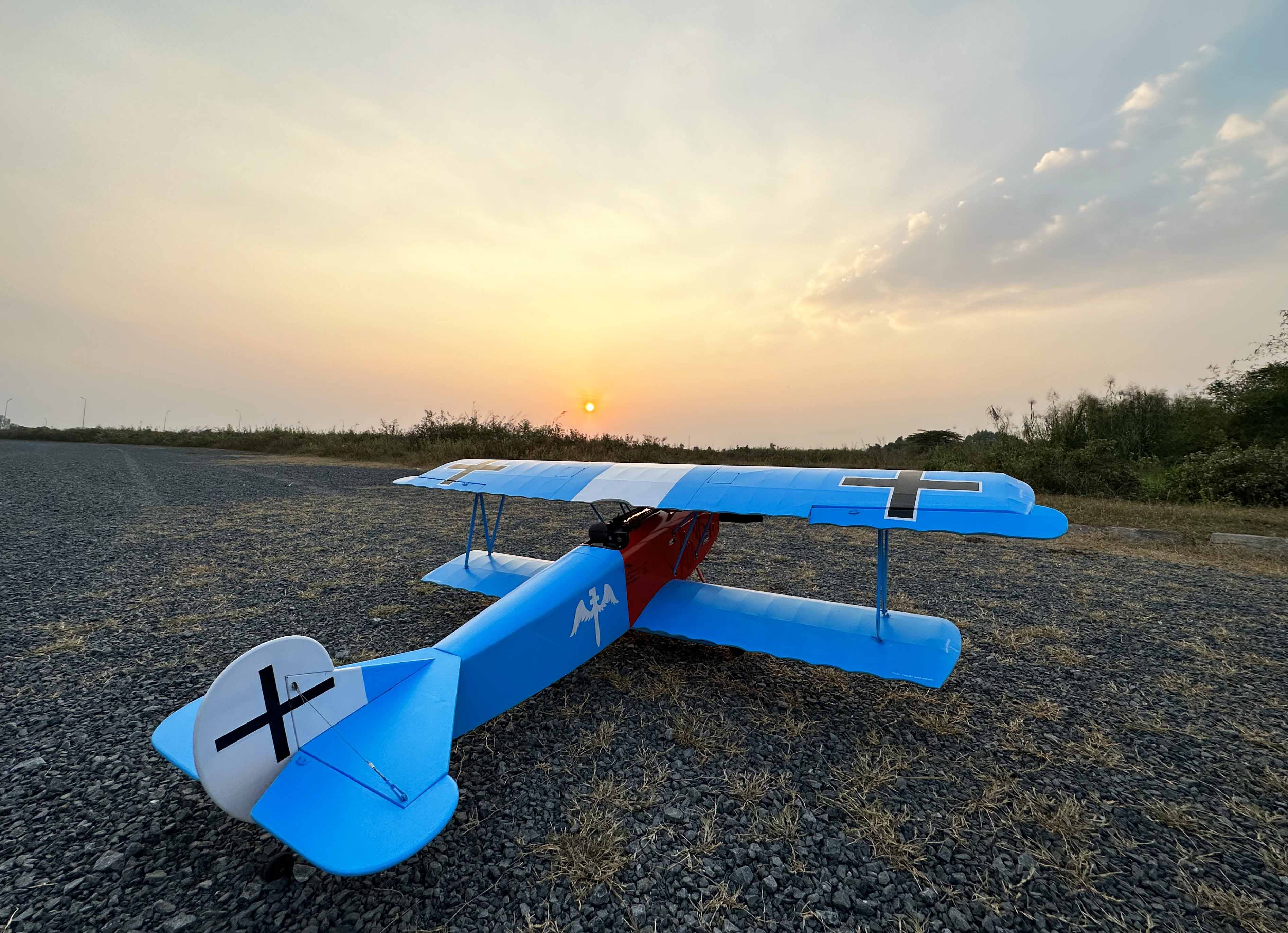

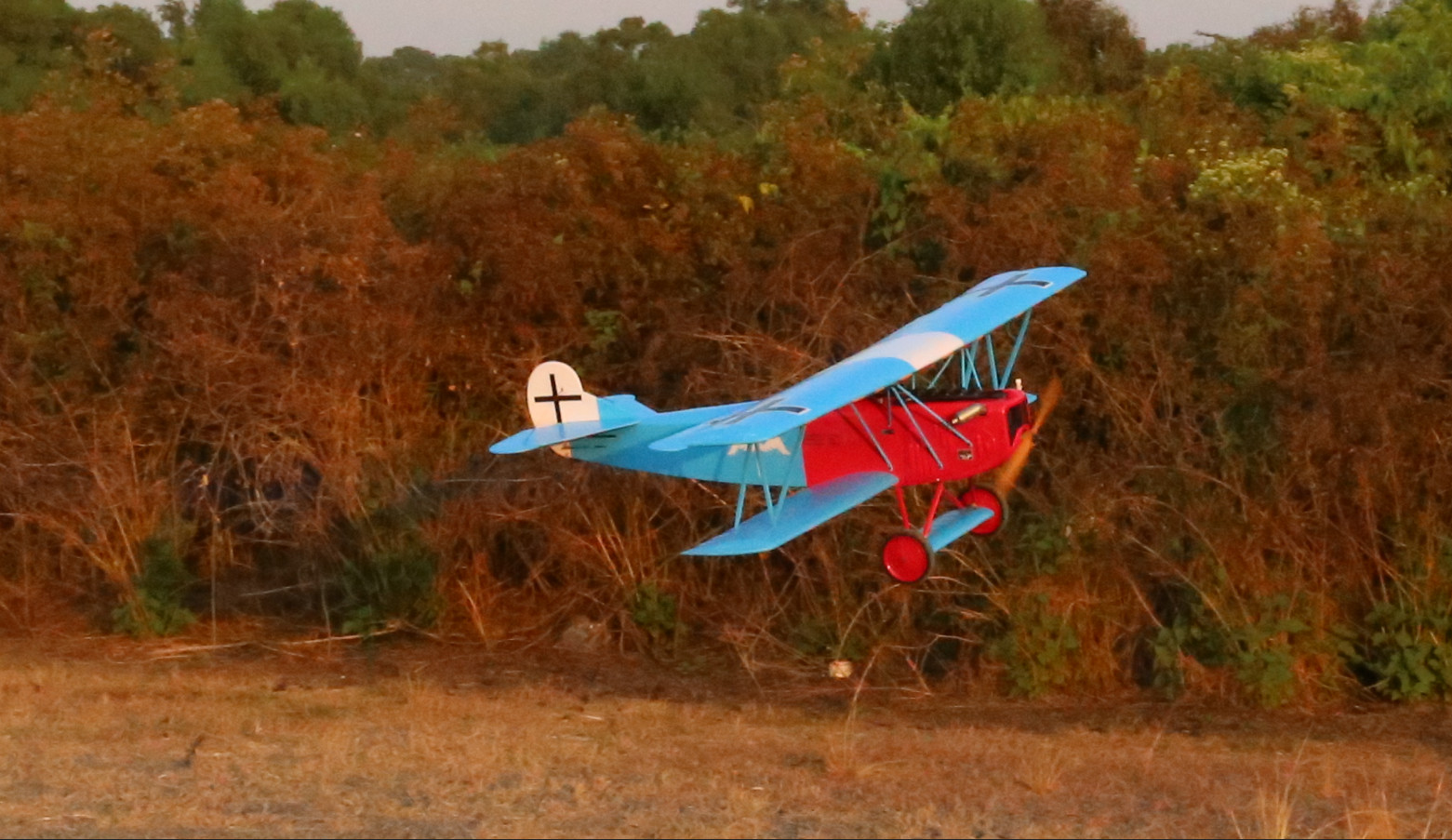

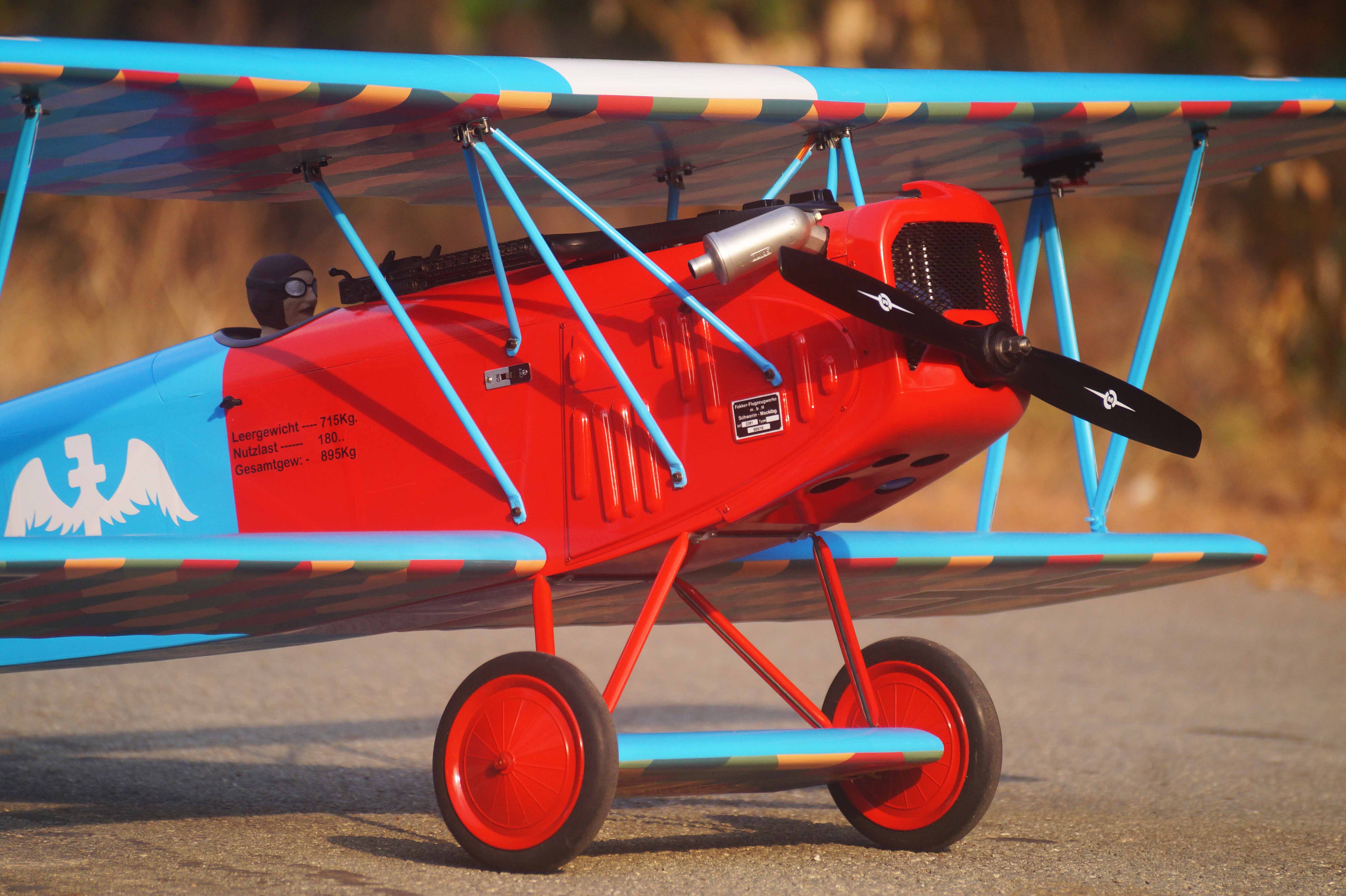

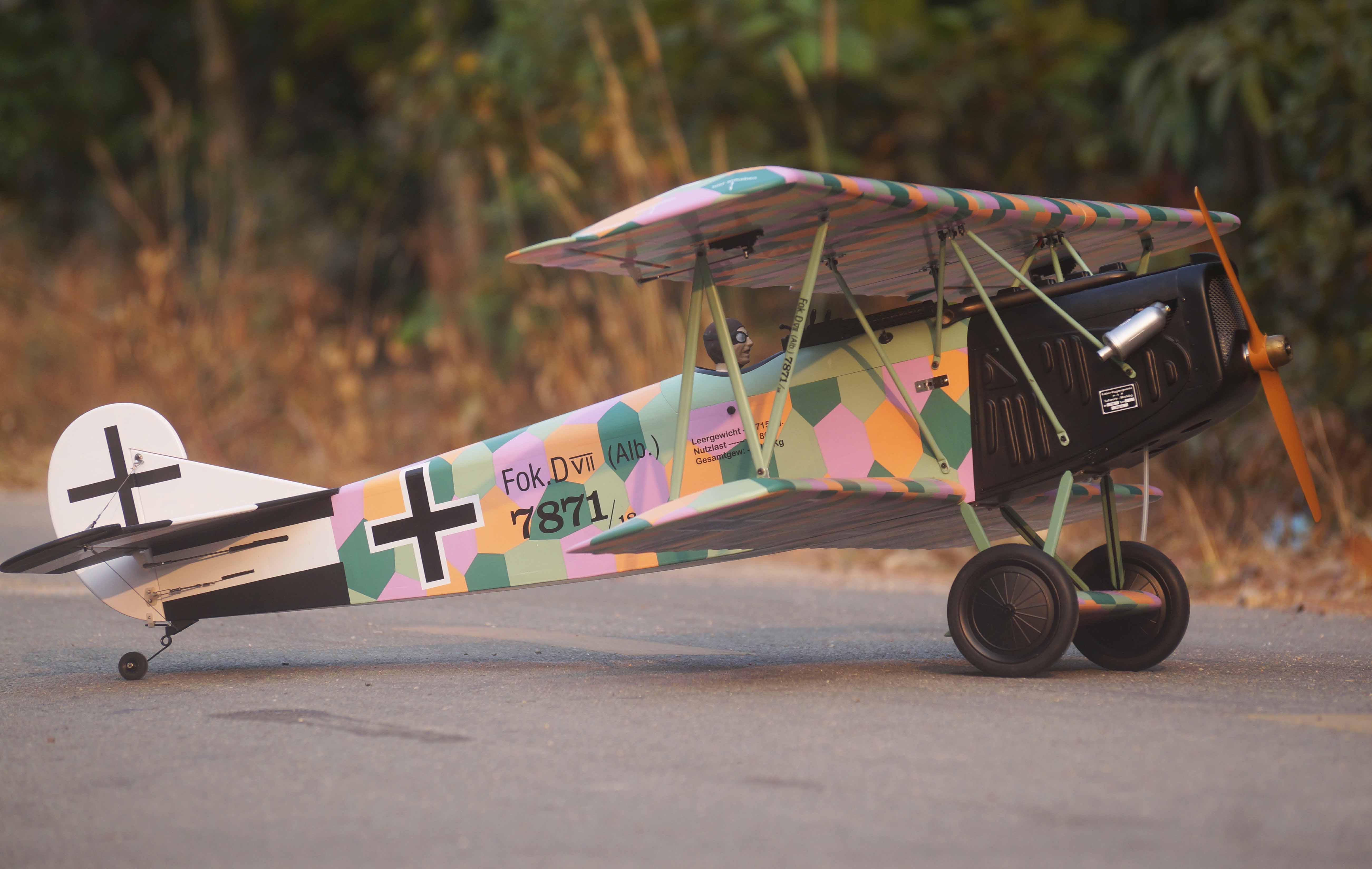

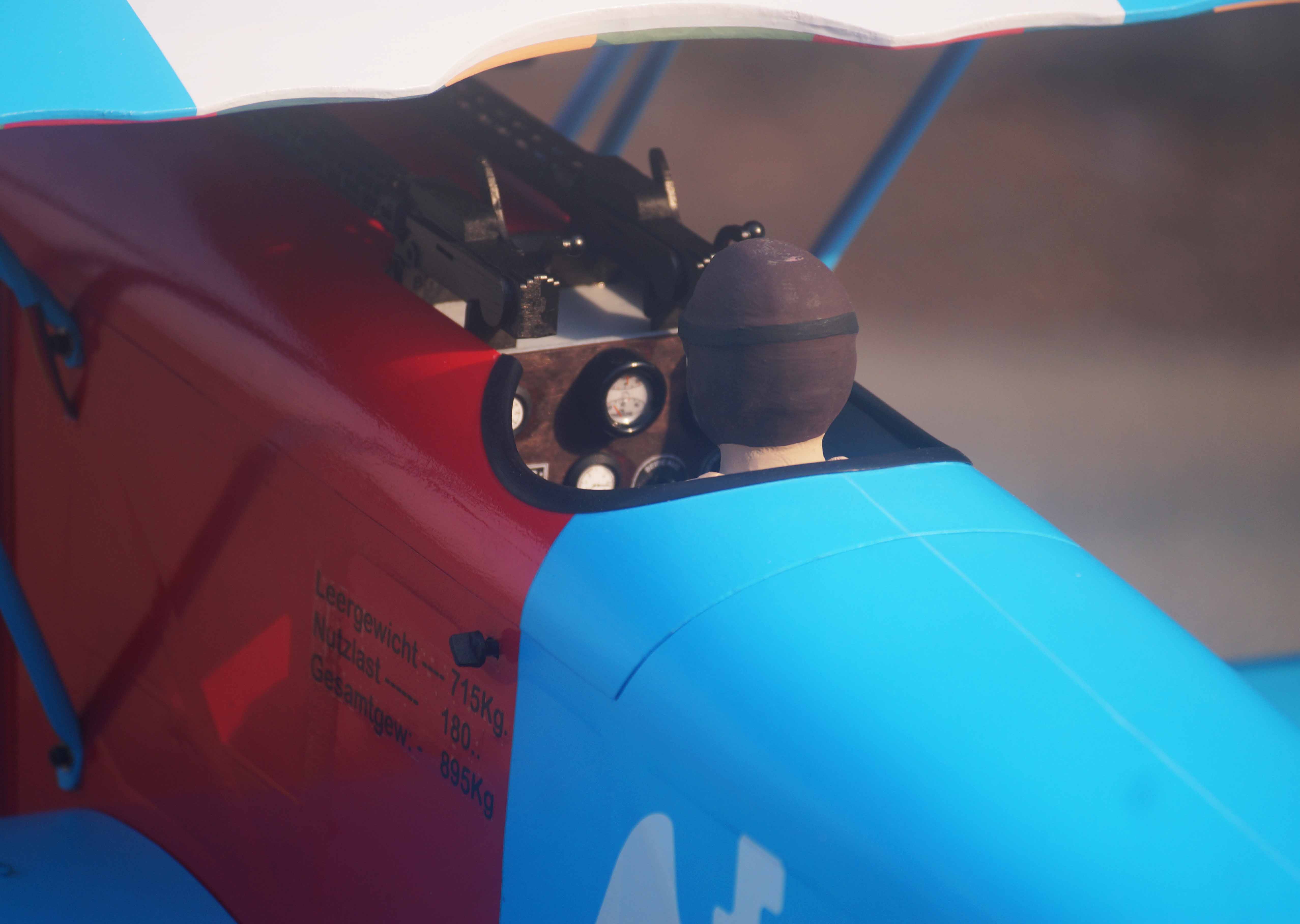

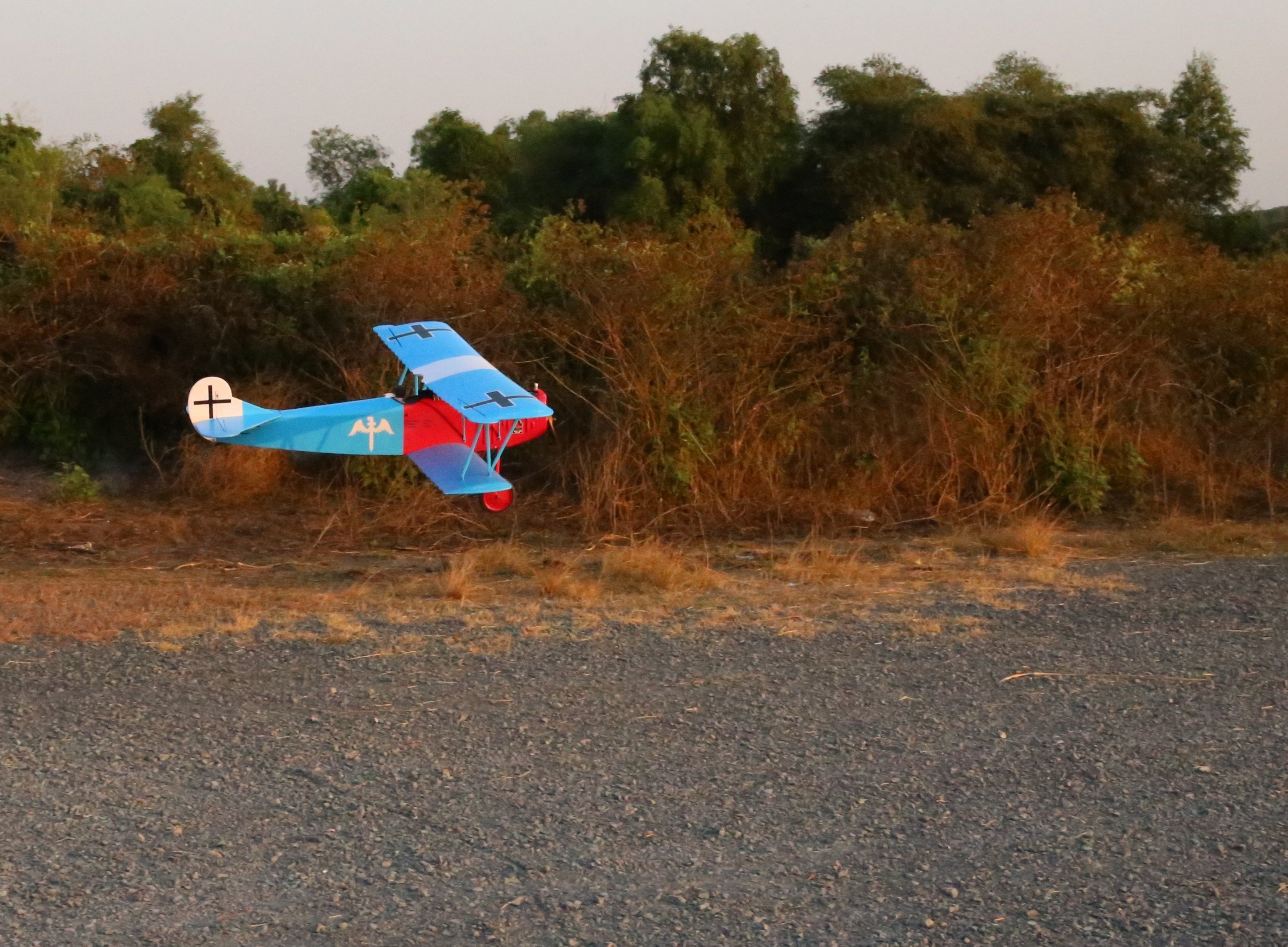

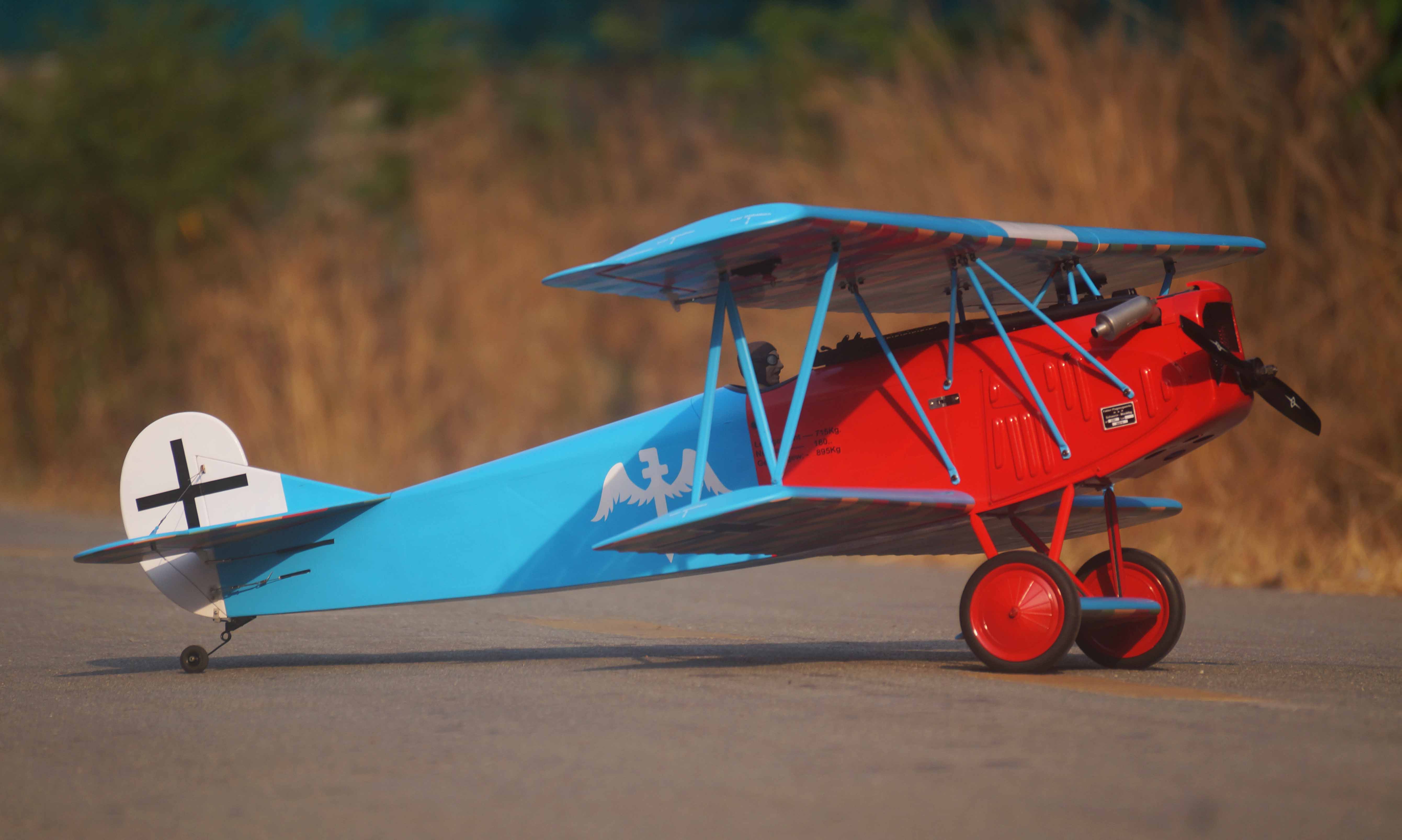

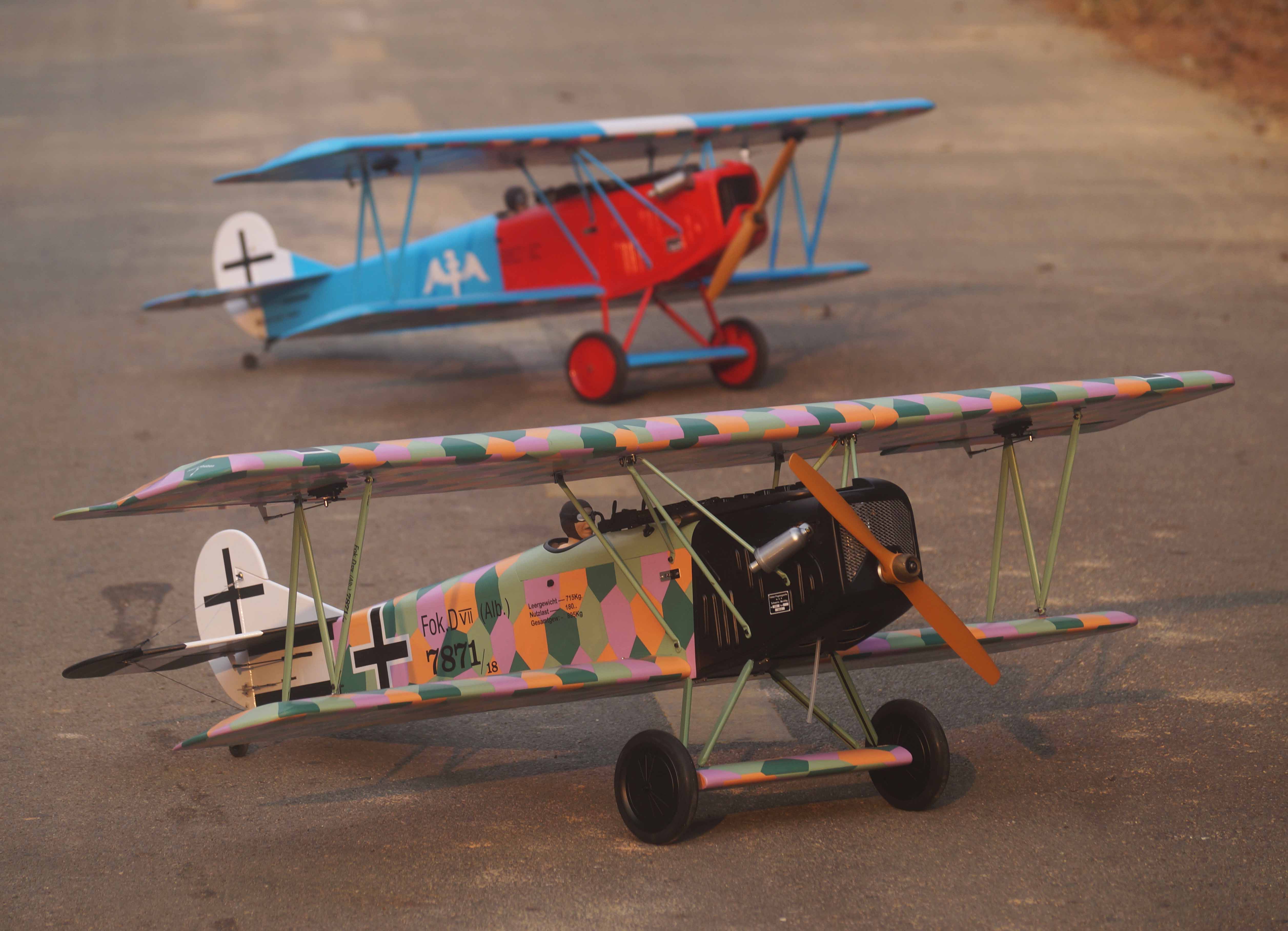

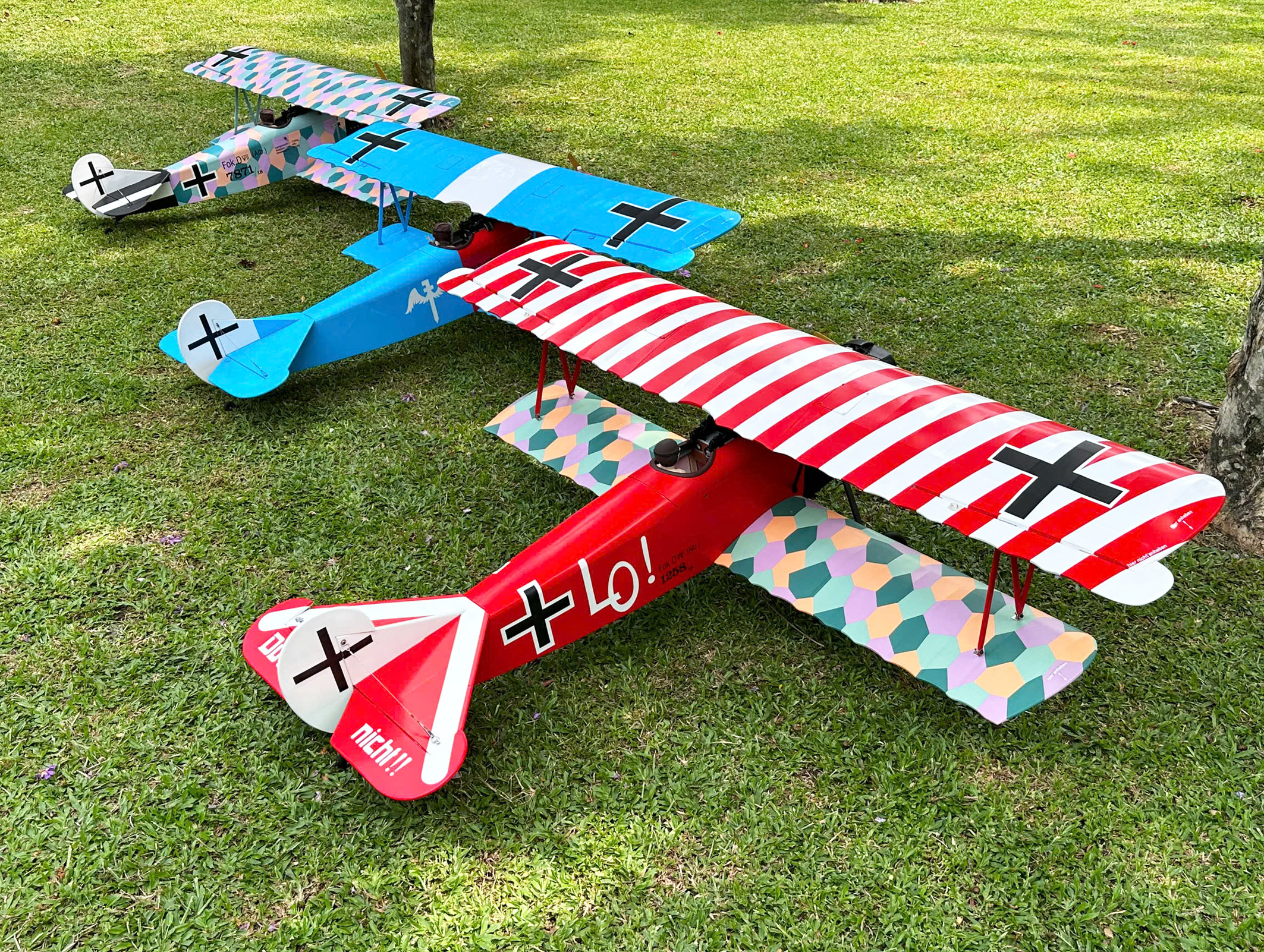

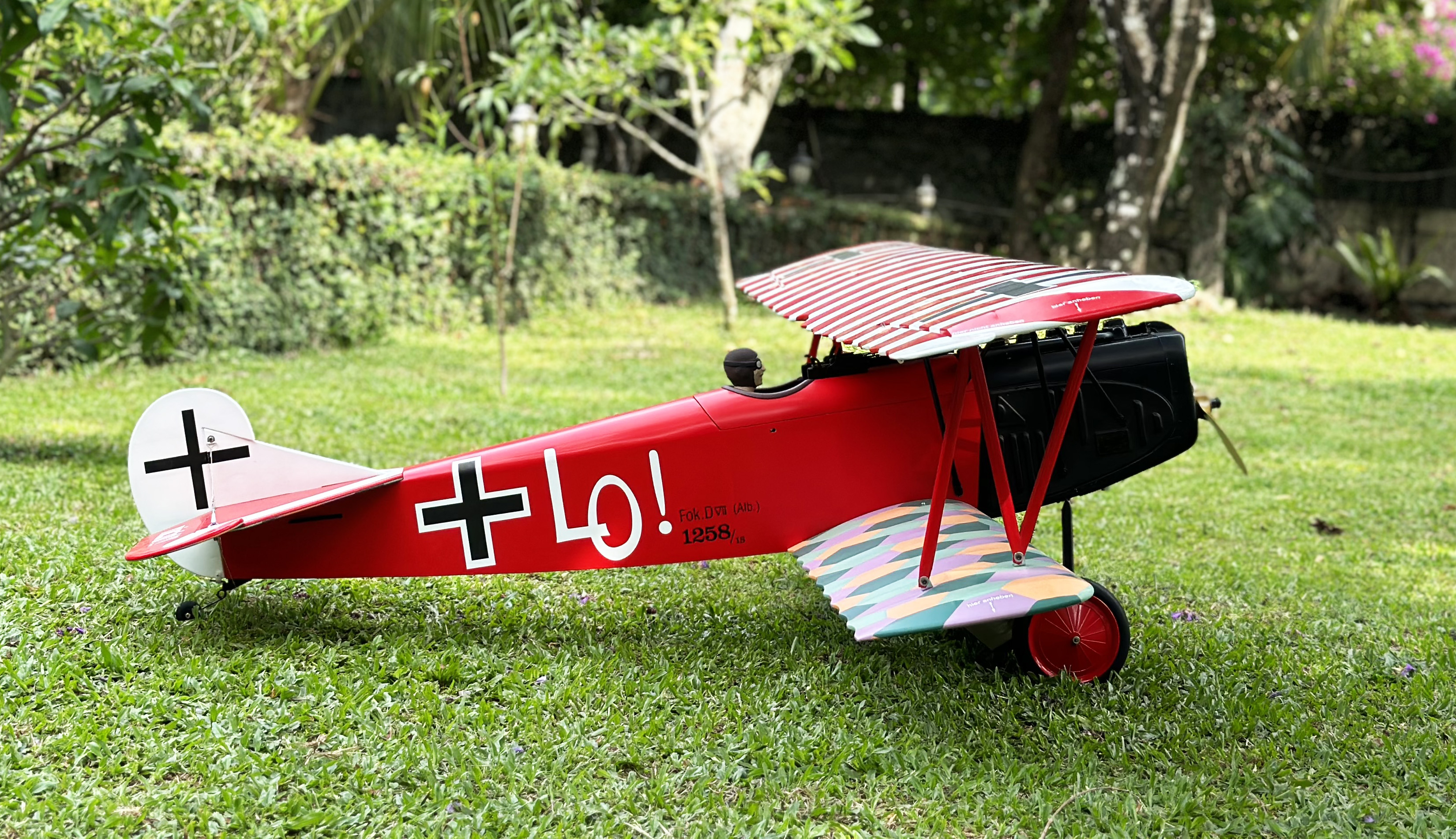

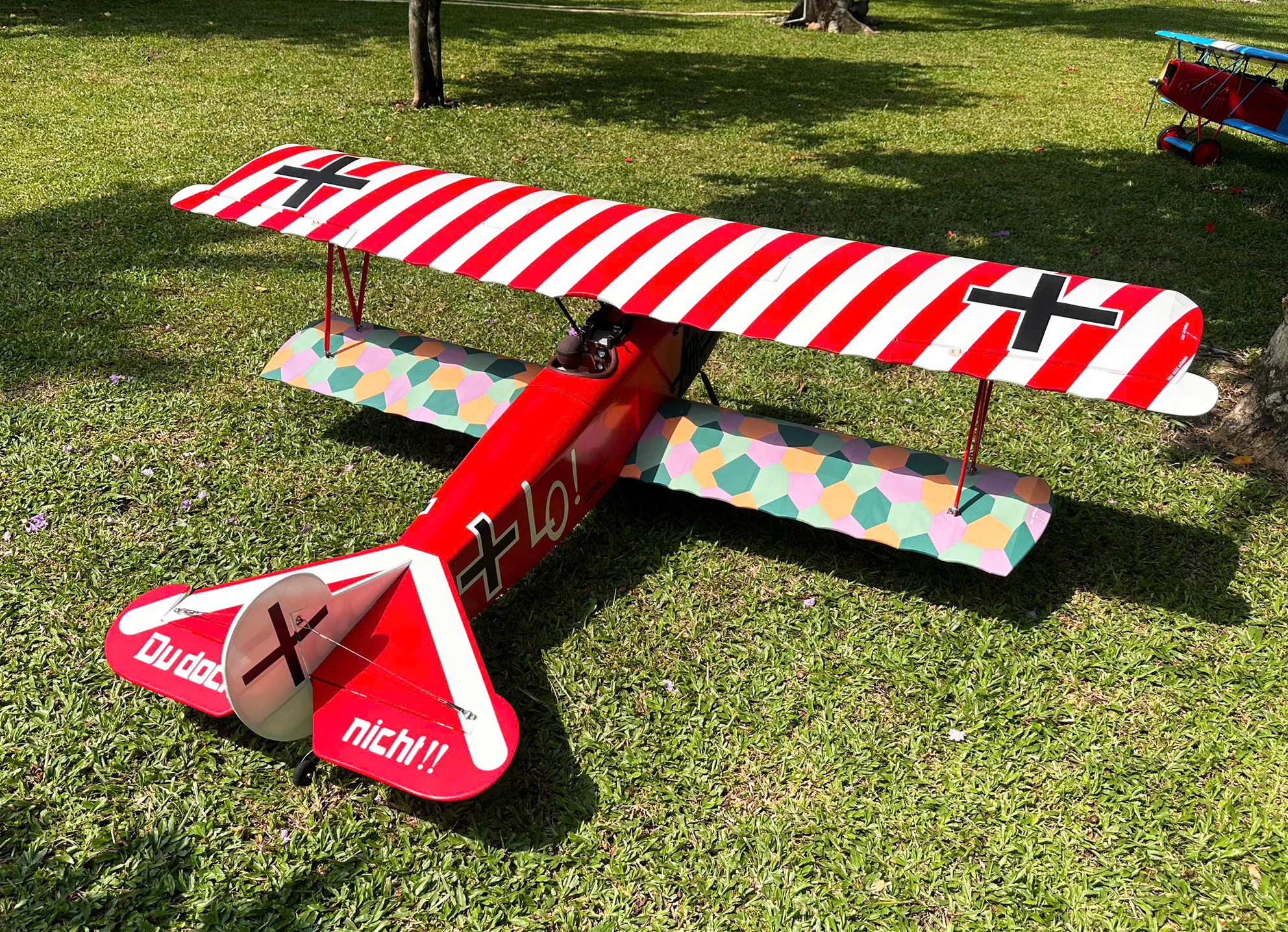

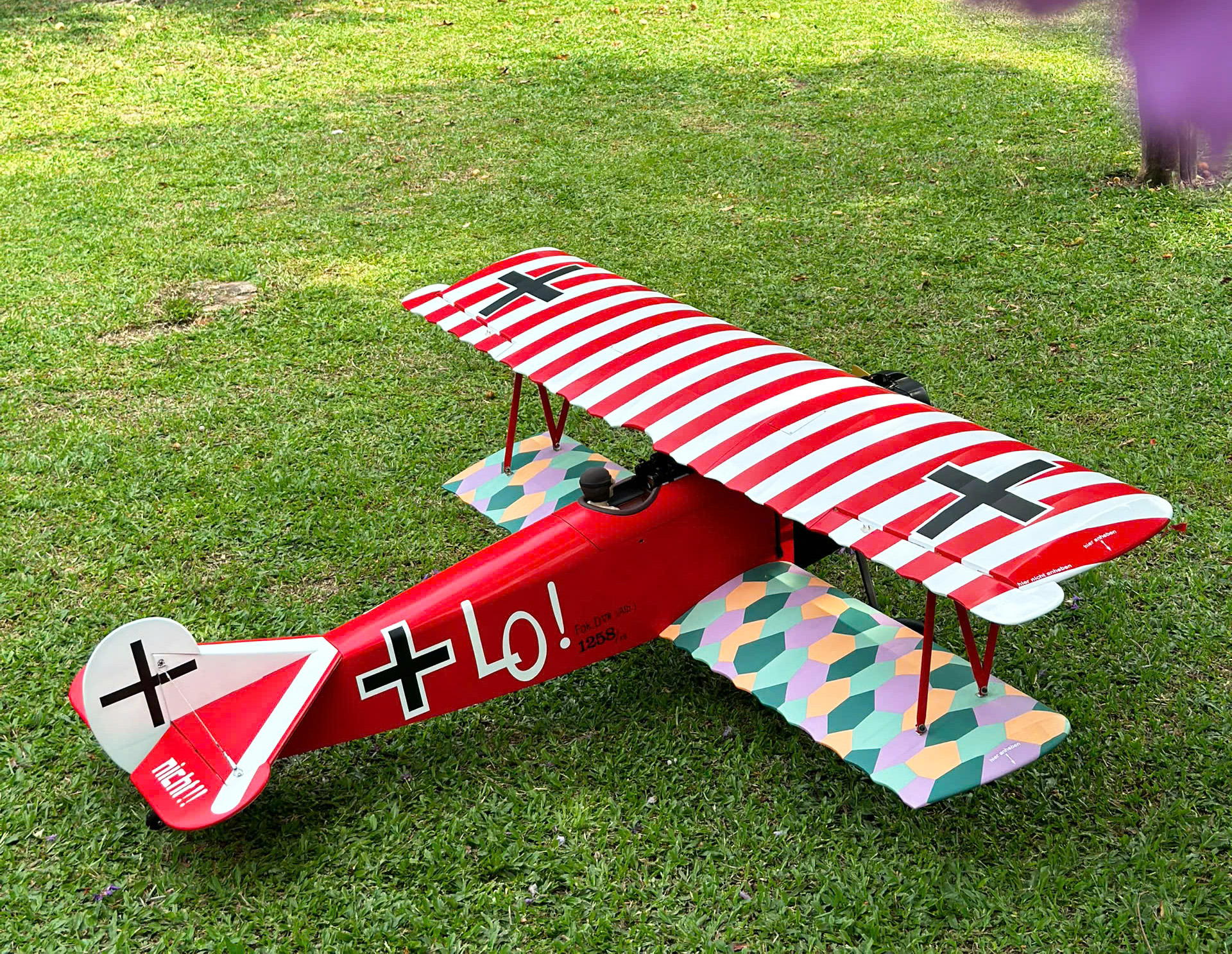

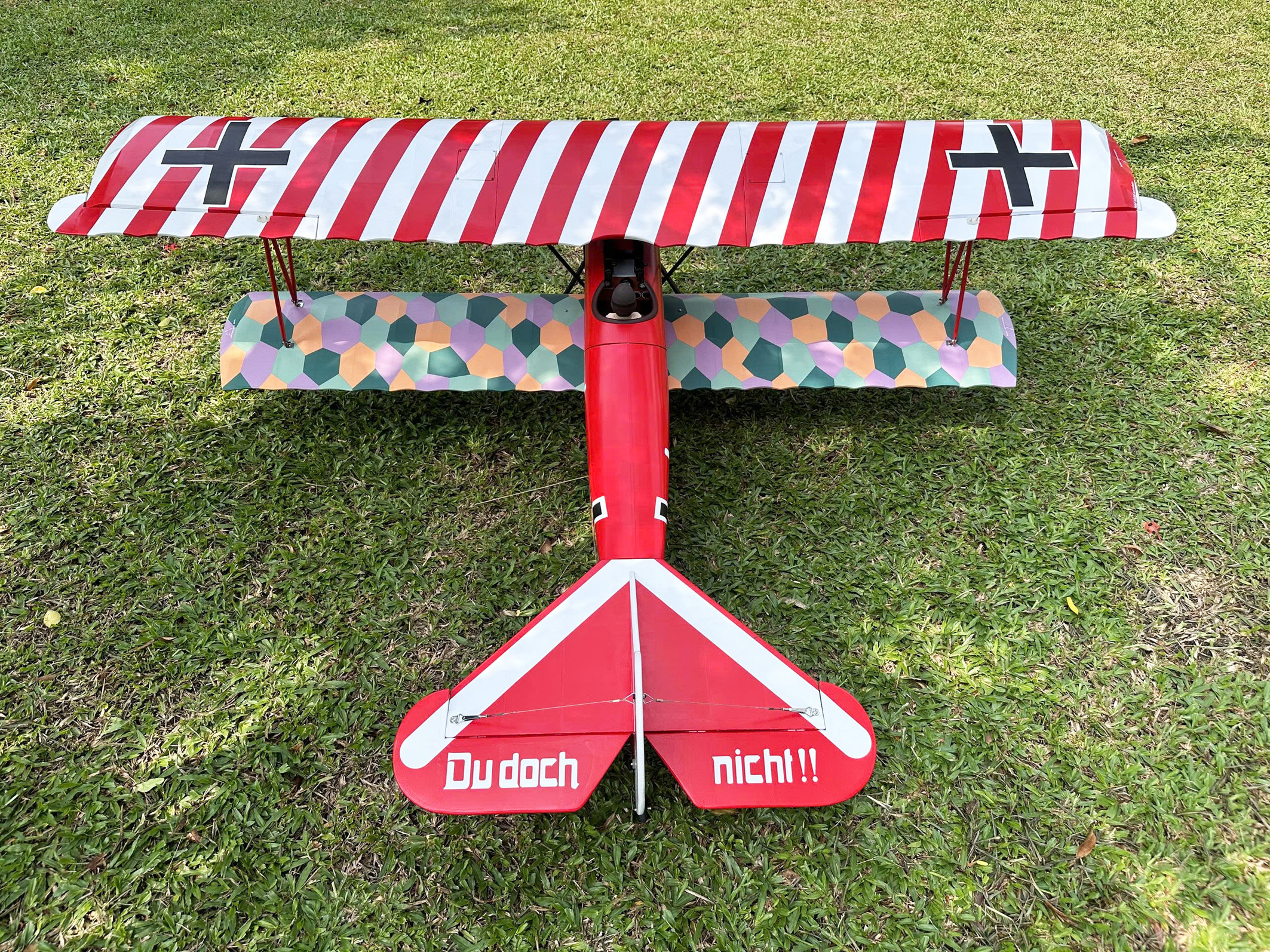

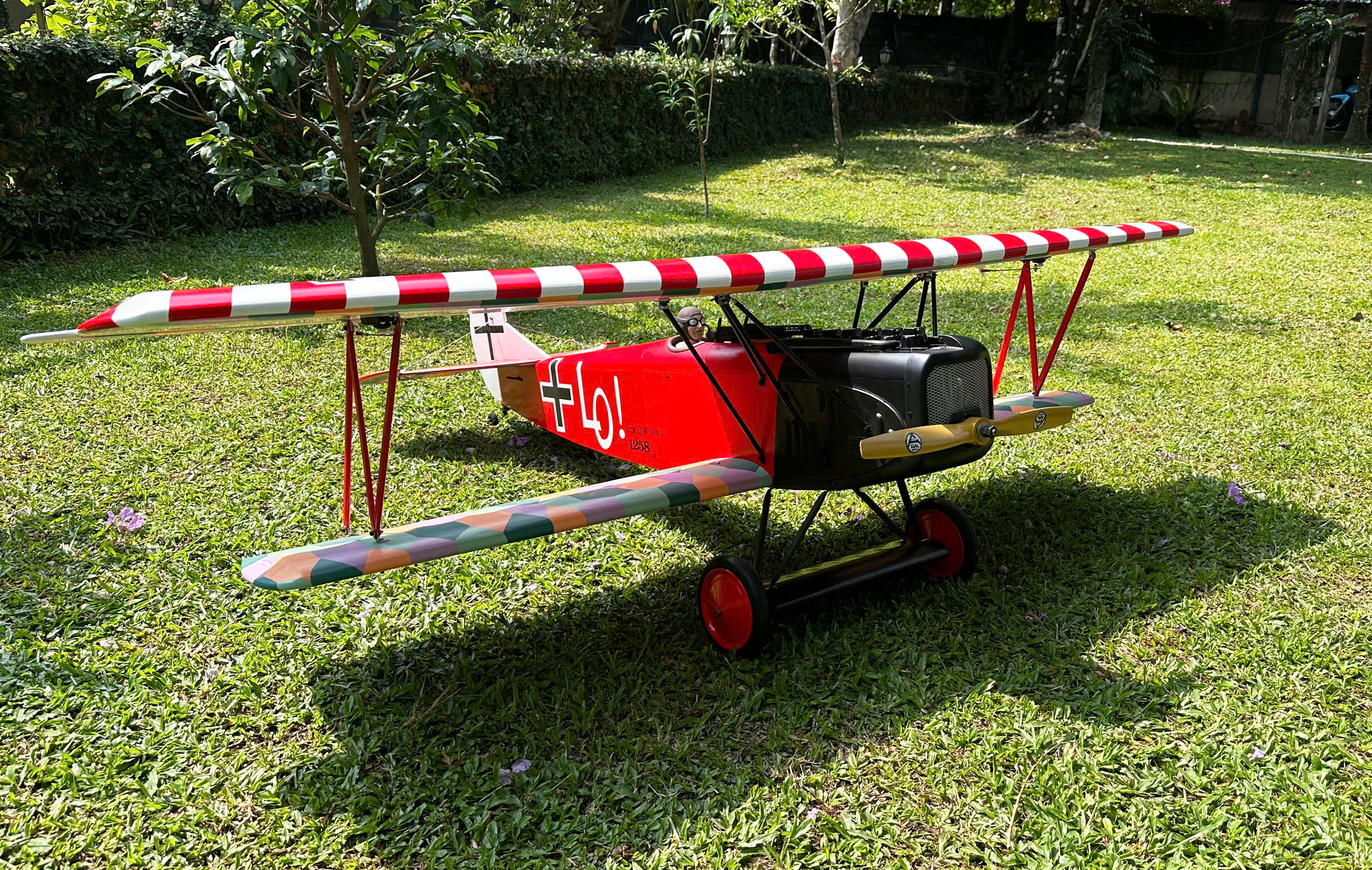

Photo gallery
