 VQA172RW - Star Light 50e       (46 EP-GP trainer)

The Star Light 50 is an aerobatic model designed for precision aerobatics and 3D flying.

This VQA172RW Red-White version is built from balsa and lite plywood, with a fiberglass cowling, removable canopy and NEW PVC covering.

The model is available in three color versions. This page presents the Red-White version shown in the photographs.

 Features:
- All balsa and lite plywood construction
- Fiberglass cowling
- NEW PVC covering
- Removable canopy
- Pre-hinged control surfaces
- Two-piece wing with aluminum joiner
- Aerobatic model for precision and 3D flying
- 52mm plastic spinner included
- Main landing gear with wheel pants
- Tail wheel assembly

 Specifications:
- Wingspan: 1430mm
- Length: 1450mm
- Weight ready to fly: 2900g with 6S 5300mAh LiPo
- Glow engine: .55 2-stroke
- Electric motor: Hacker A50-16S + X70 SBEC-Pro or equivalent
- Propeller: APC 14x7 or 15x7
- Radio: minimum 5 channels / 5 servos
- Servos: 3 standard for rudder and ailerons, 2 mini for elevator
- LiPo battery: 6S 4500-5300mAh
- Recommended CG: 145mm behind the wing leading edge
- Aileron extension cord: 150mm Y lead
- Elevator extension cords: 600mm x2
- Aileron extension cords: 100mm x2
- Control throws and expo as specified in the instruction manual
- Rudder-to-elevator mix: approximately 6% up

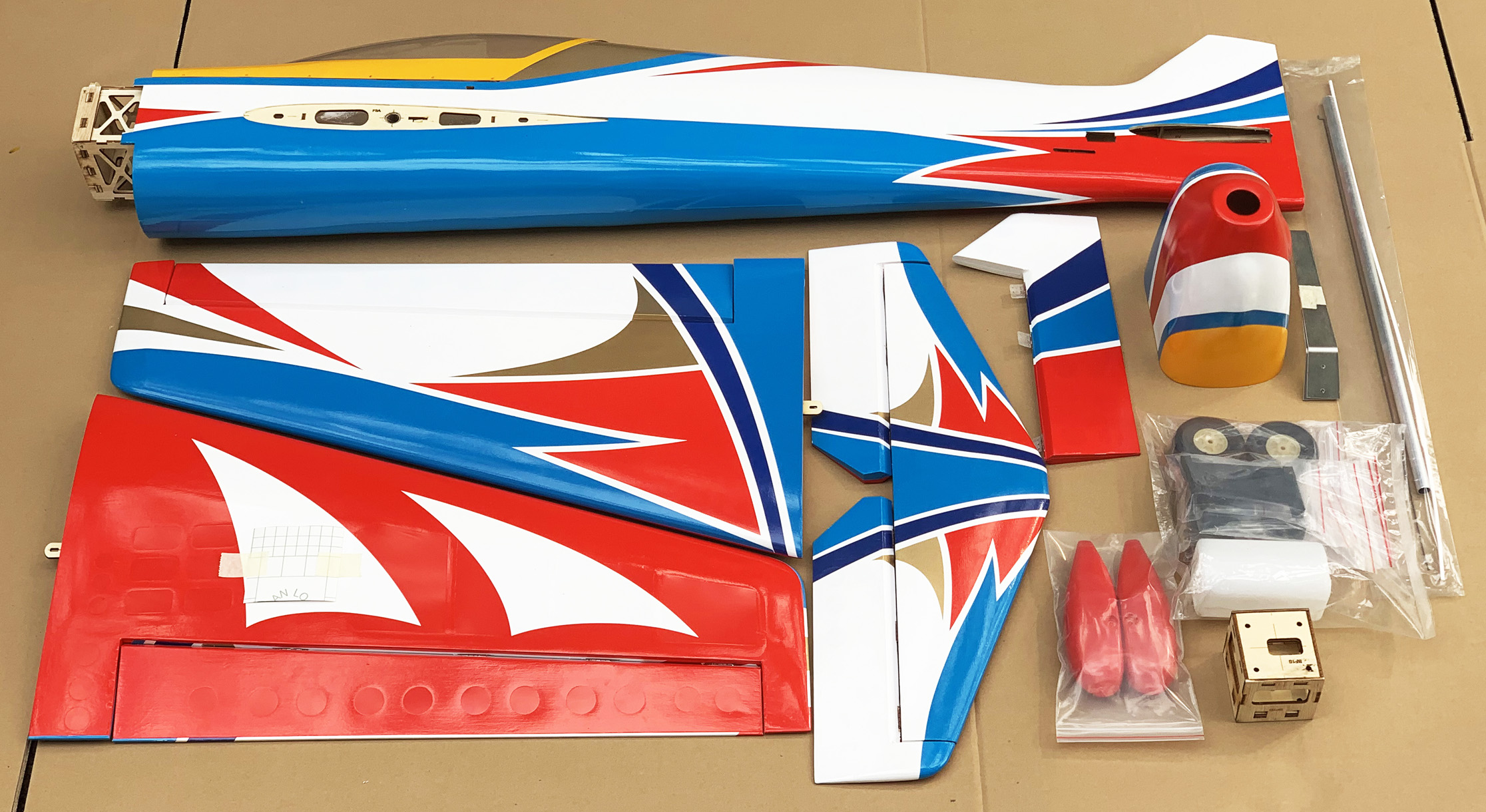

 Includes:
- Fuselage
- Right wing half with aileron
- Left wing half with aileron
- Rudder
- Horizontal stabilizer with elevators
- Pushrods and aluminum wing joiner
- Fiberglass cowling
- Main landing gear
- 65mm wheels and wheel pants
- Tail landing gear and wheel
- Motor mount set
- 52mm plastic spinner
- Hardware bags
- Assembly instruction manual
- VQA172RW Red-White color scheme

Does not include: radio, motor, glue, and silicon fuel line

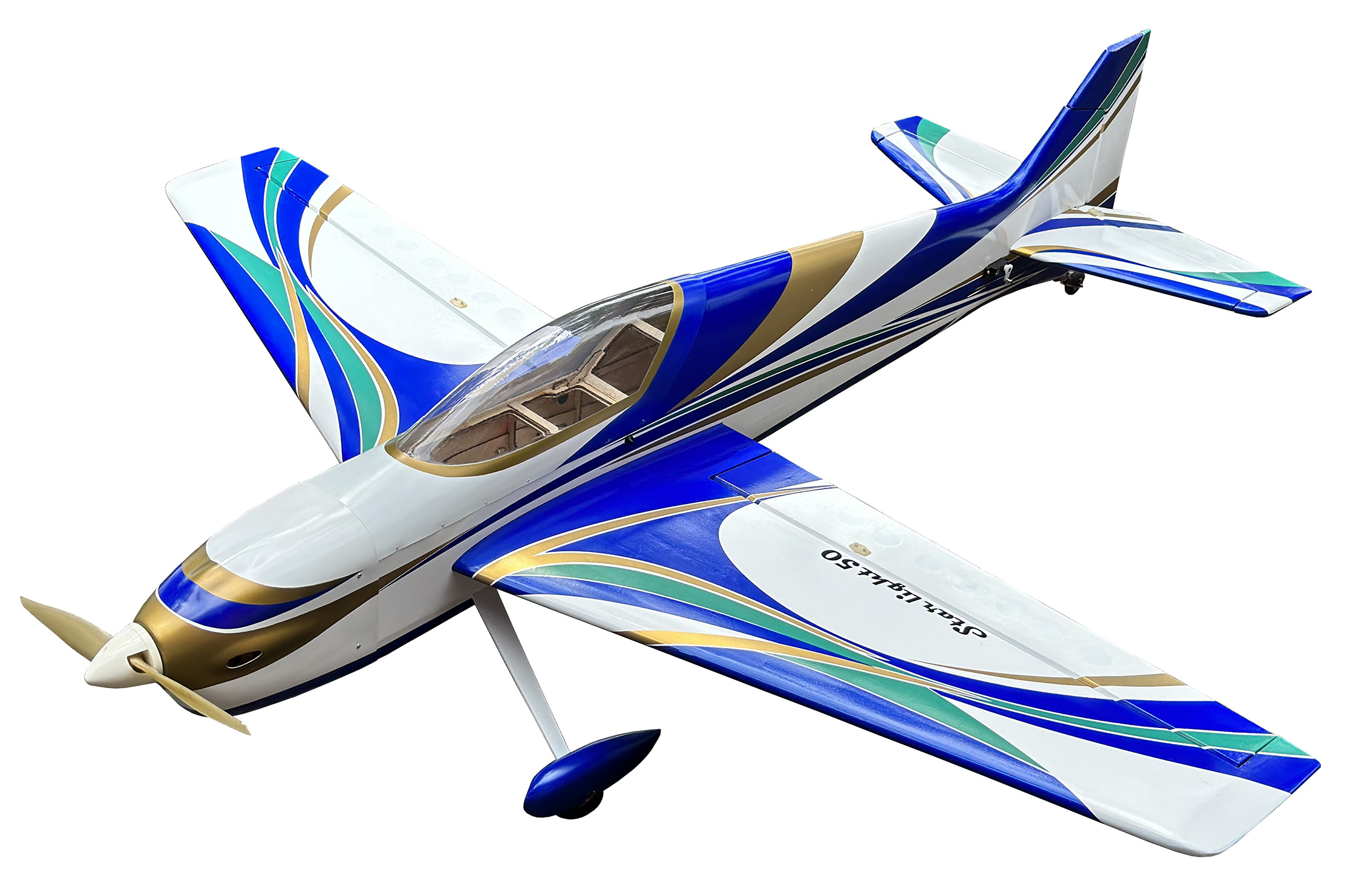

VQA172RW (Red-White version) VQA172BW (Blue-White version) VQA172RG (Red-Green version)

Download instruction guide here

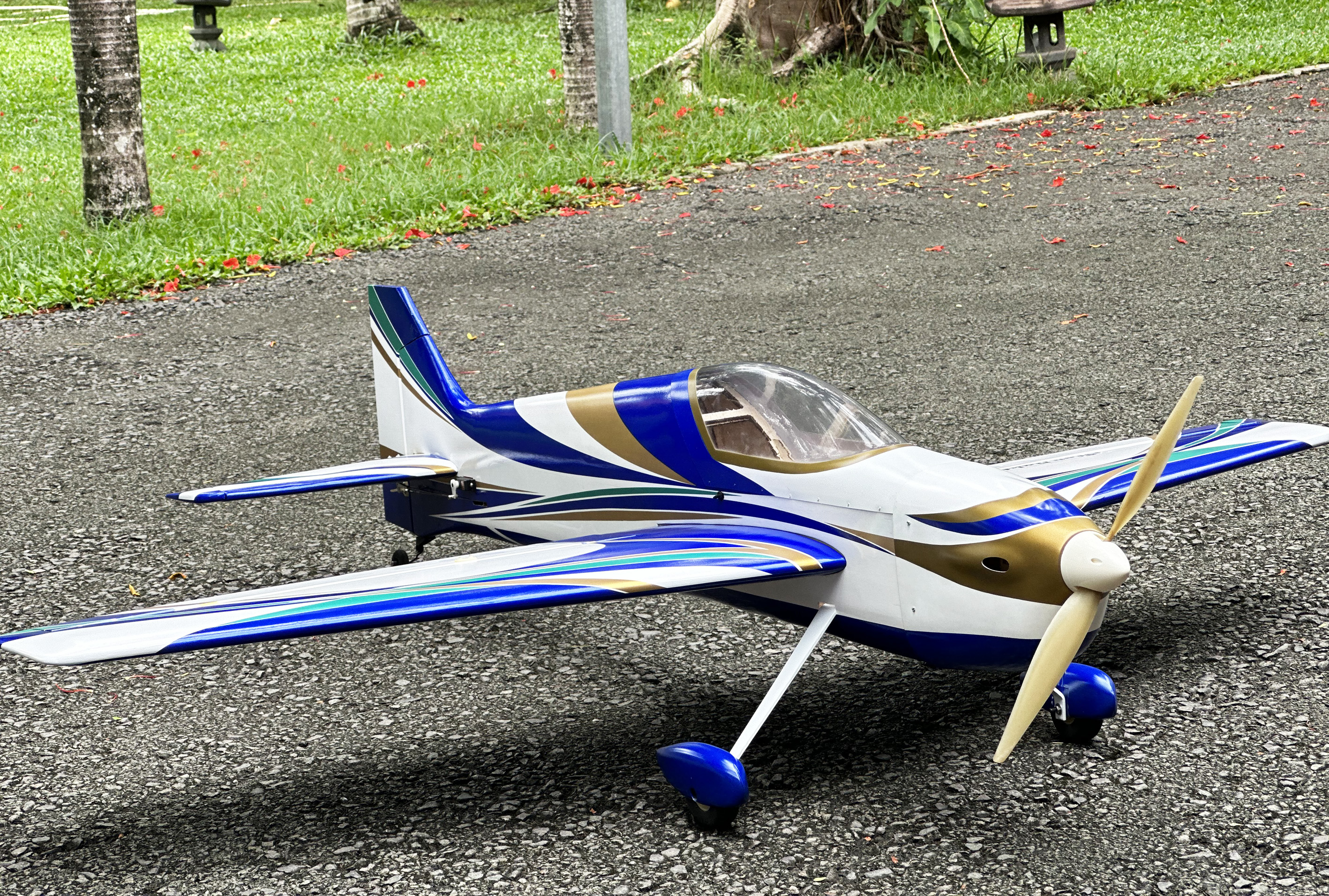

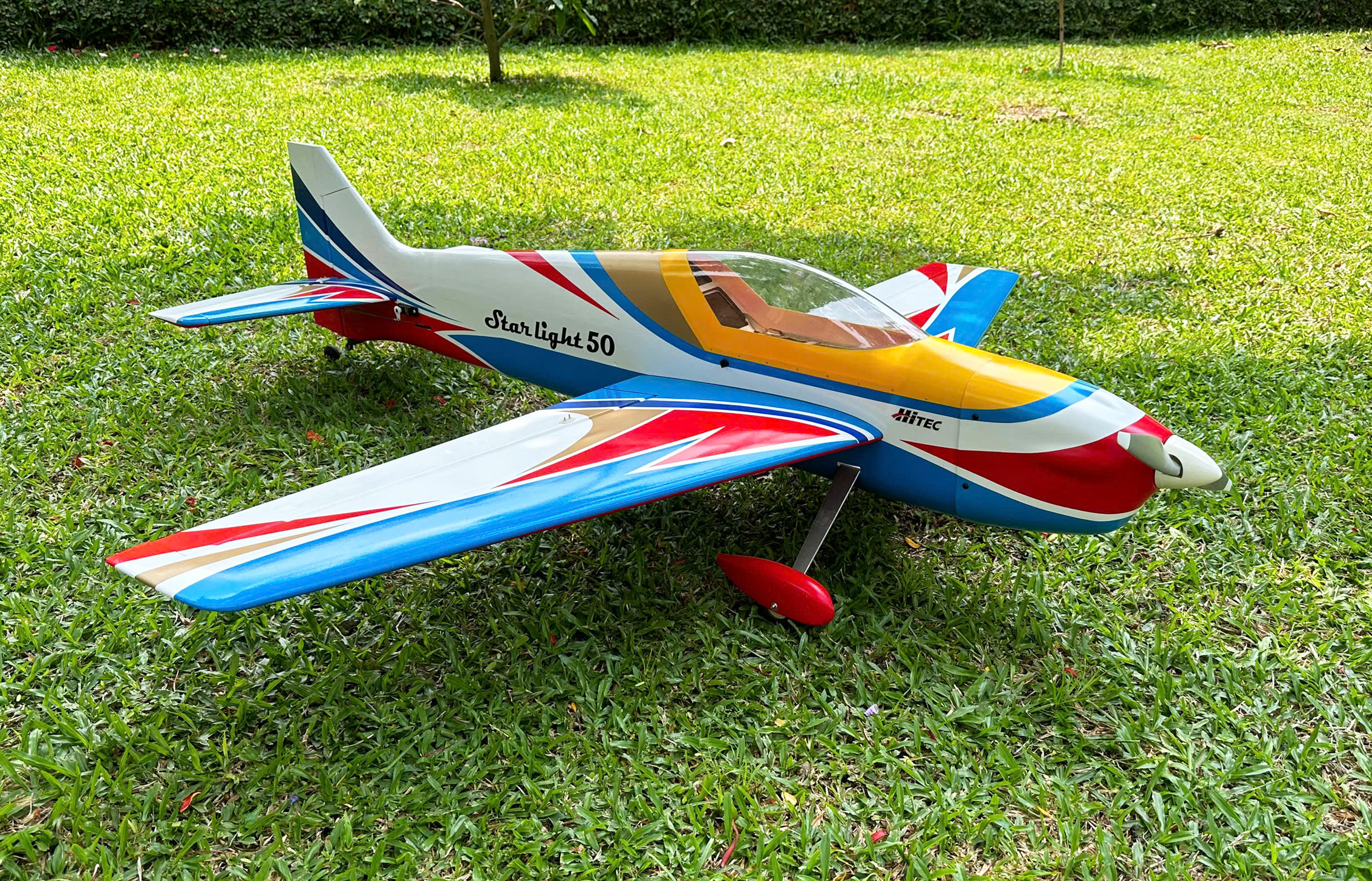

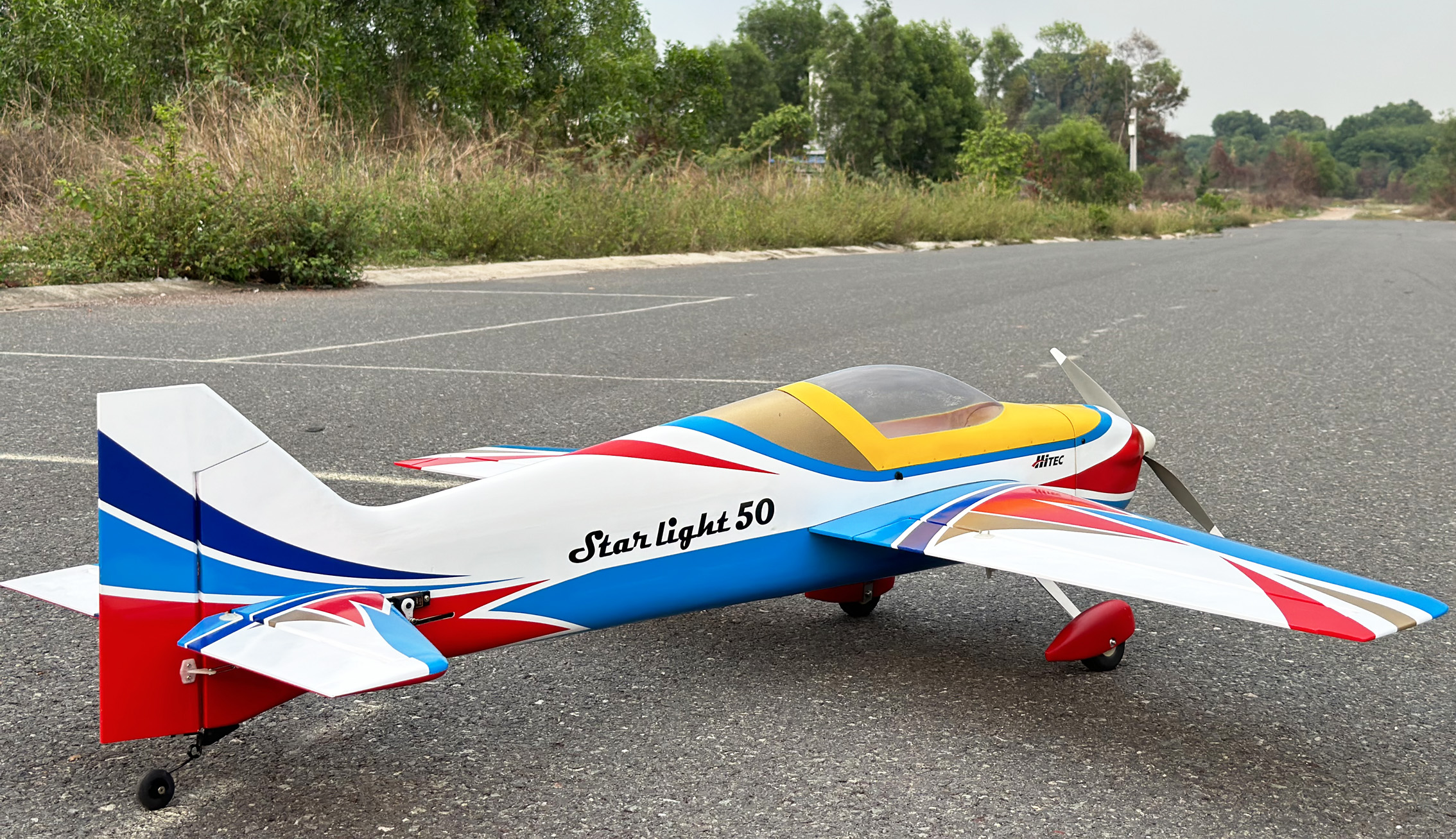

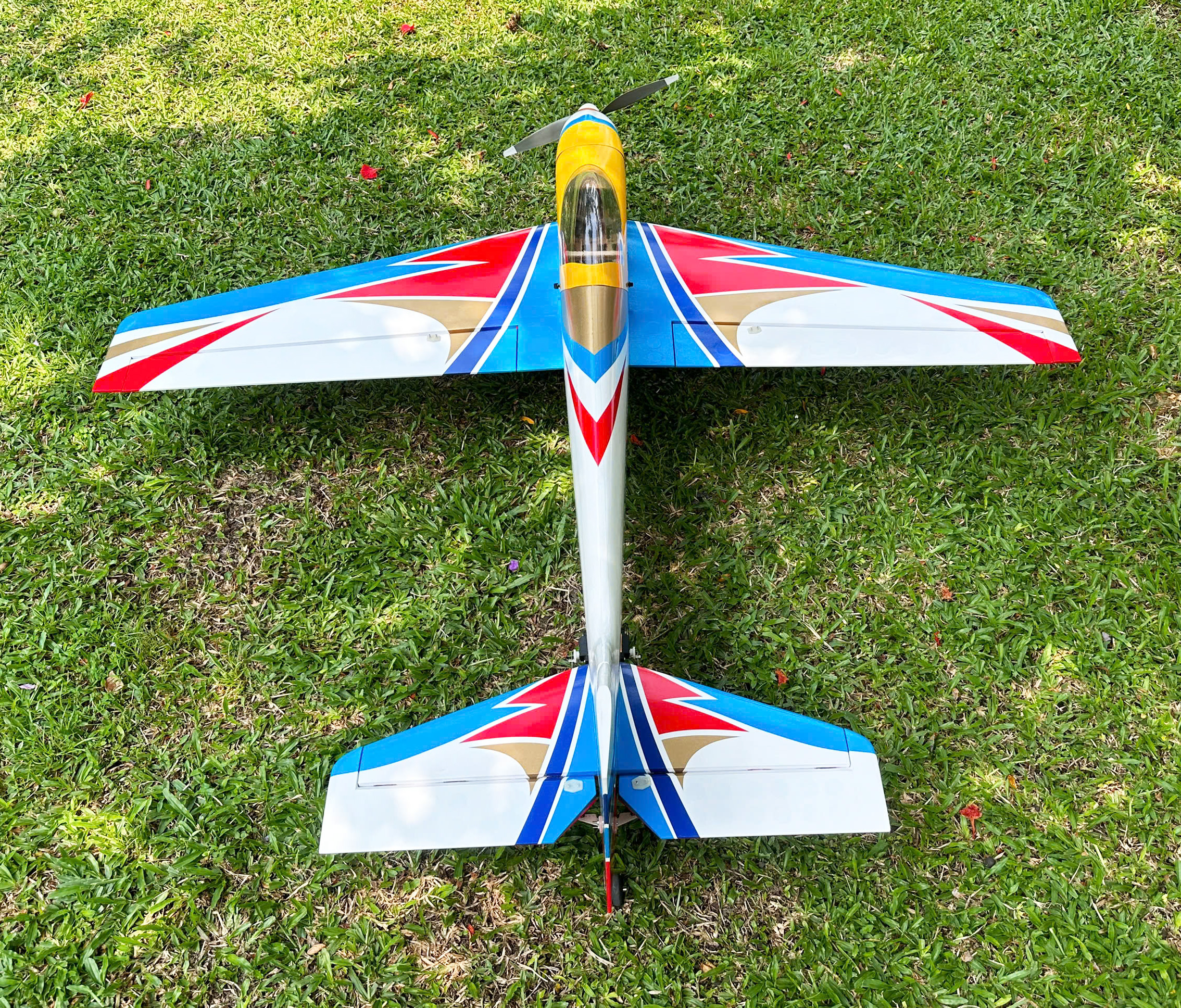

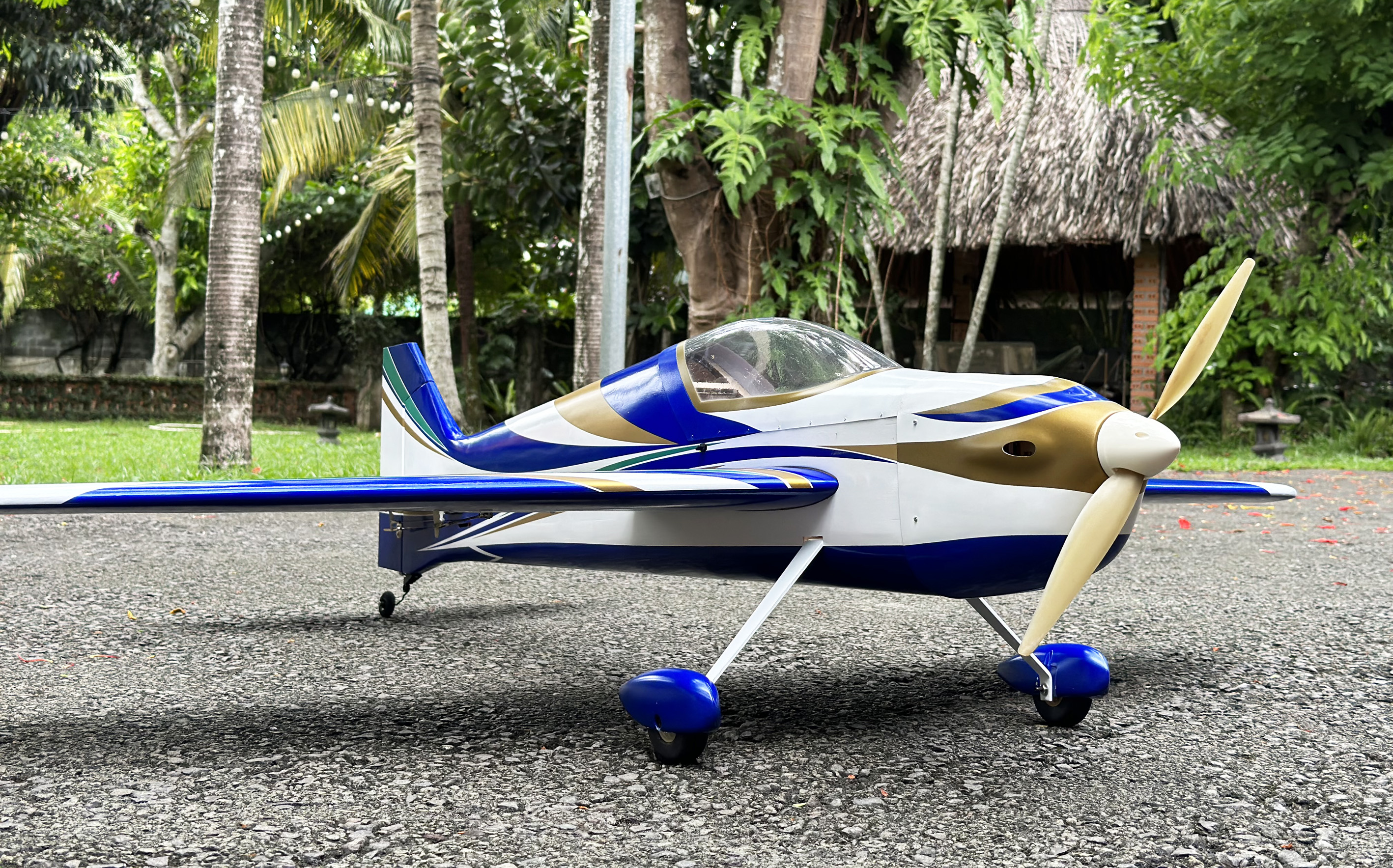

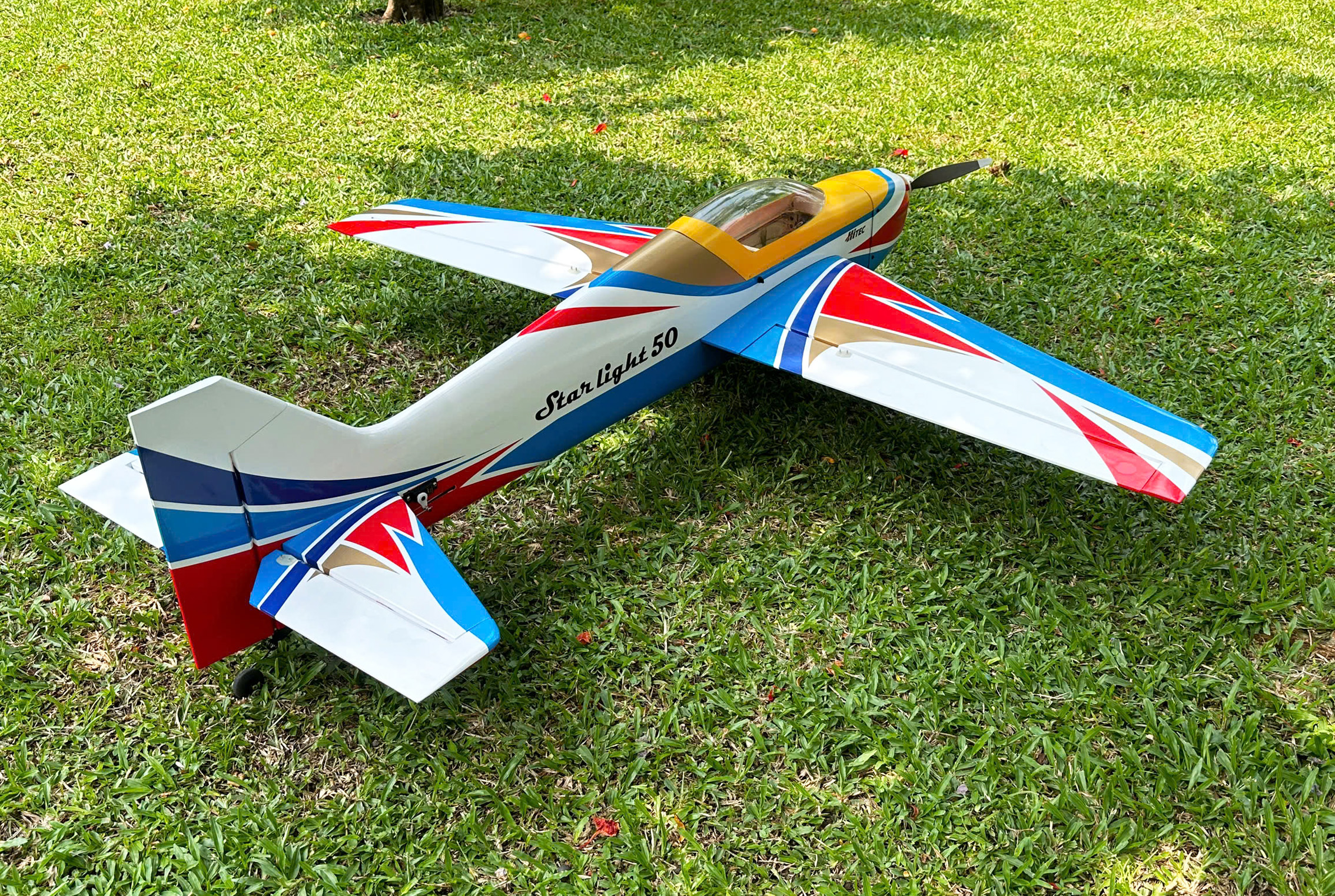

Photo gallery
